Whirlpool w11200314 Wire Harness

Product Description

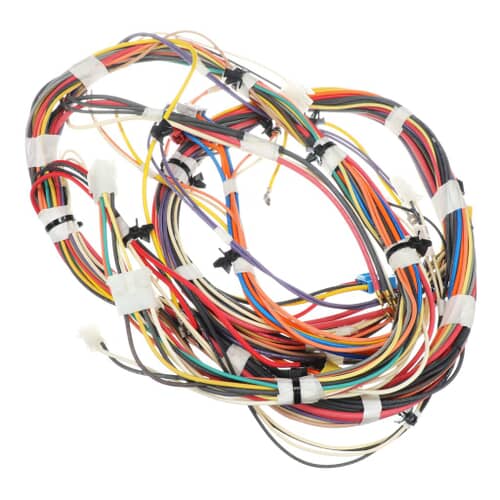

The Whirlpool w11200314 is an OEM wire harness designed to carry electrical signals and power between components within a Whirlpool appliance. Wire harnesses bundle individual conductors into a single routed assembly, reducing installation complexity and the risk of loose or misrouted connections. This harness is a direct factory replacement, maintaining the original connector configurations and conductor routing. Appliance technicians and qualified service professionals install this part when the original harness shows signs of damage, melting, corrosion, or failed continuity.

This wire harness is suited for use in residential Whirlpool appliances where the original harness has degraded or failed. It is installed during appliance service calls that involve electrical diagnosis of intermittent faults, no-power conditions, or component communication failures traced back to the wiring assembly. Specific compatible models are not listed in the available data; refer to the Whirlpool parts lookup system using the appliance model number to confirm fitment before ordering.

Key Features

• OEM factory replacement maintaining original connector configuration
• Bundles multiple conductors into a single routed assembly for clean installation
• Designed to restore proper electrical continuity between appliance components
• Direct drop-in replacement requiring no modification to existing harness routing

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential appliances. Verify fitment against your specific appliance model number before installation, as wire harness designs vary by assembly and production date.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect the appliance from its power source completely before removing or installing any wire harness. Route the replacement harness to match the original path, securing all connectors fully until they click or lock into position. Consult the appliance wiring diagram, typically located inside the service panel or available through Whirlpool technical documentation, to verify connector placement before restoring power.

Technical Specifications

• Part Type: Wire Harness

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w11200314
