Whirlpool w10565801 Wire Harness Oem

Product Description

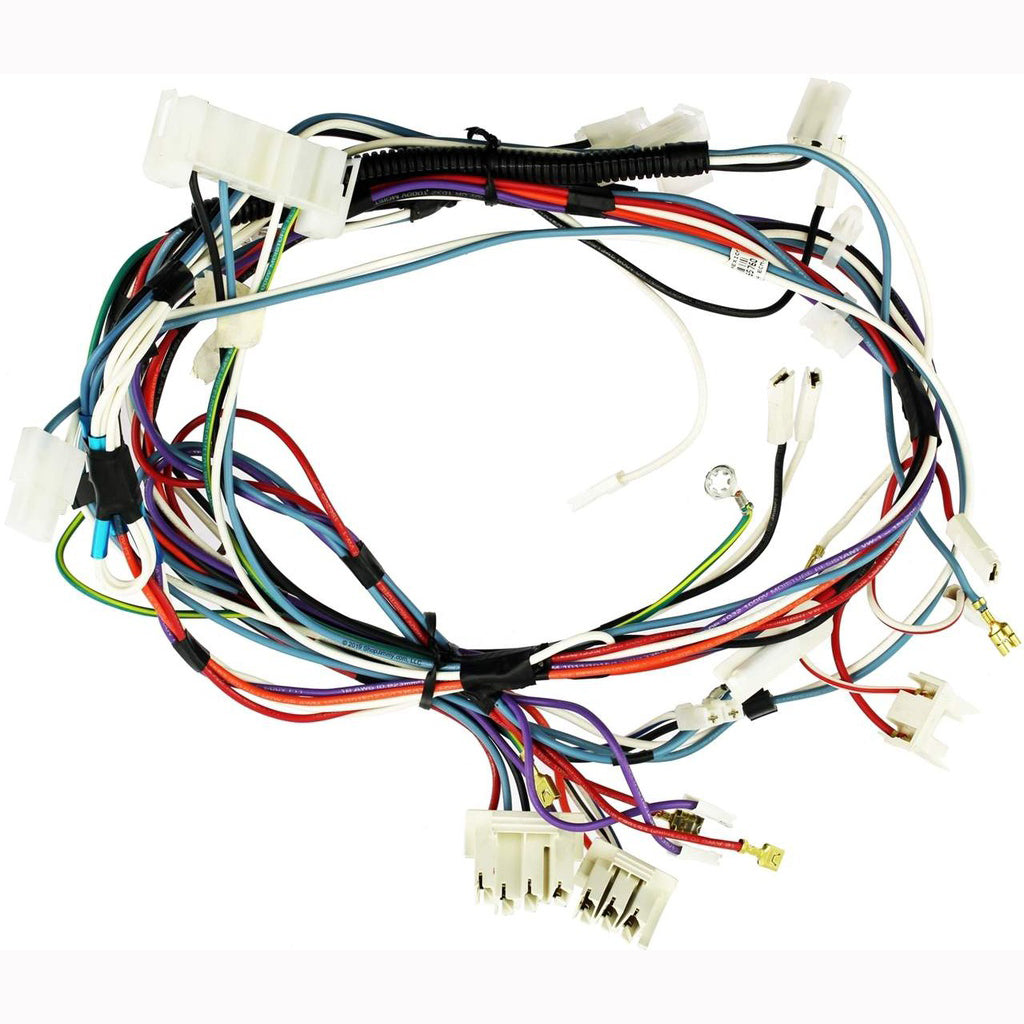

The WHIRLPOOL w10565801 is an OEM wire harness designed for use in Whirlpool appliances requiring direct electrical connections between components. A wire harness bundles and routes multiple conductors through a single organized assembly, protecting individual wires from abrasion, heat, and moisture while ensuring reliable signal and power transfer. This part is manufactured to original equipment specifications, making it a direct-fit replacement for technicians servicing units where the original harness has failed due to damage, corrosion, or broken connector terminals.

The w10565801 wire harness is intended for use in residential appliance repair applications. It is typically installed by appliance service technicians during diagnostic repair calls where intermittent electrical faults, failed components, or physical wire damage have been traced to harness failure. Installation requires matching the correct connector positions and routing paths as found in the original assembly.

Key Features

• OEM part manufactured to original Whirlpool specifications
• Bundled conductor assembly for organized, protected wire routing
• Direct-fit replacement for the original harness
• Connector terminals designed for secure, reliable electrical contact

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool residential appliances. Consult the appliance model number and wiring diagram to confirm fitment before installation.

Installation Notes

Appliance repair technicians should disconnect power to the unit at the breaker or by unplugging the appliance before beginning any harness replacement. Route the new harness along the original path, securing it away from moving parts, sharp edges, and heat sources. Ensure all connector tabs fully engage before restoring power. Refer to the appliance service manual for connector locations and routing diagrams specific to the unit being serviced.

Technical Specifications

• Part Type: Wire Harness
• OEM: Yes

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: w10565801
