Whirlpool W10558556 Wire Harness Oven Range

Product Description

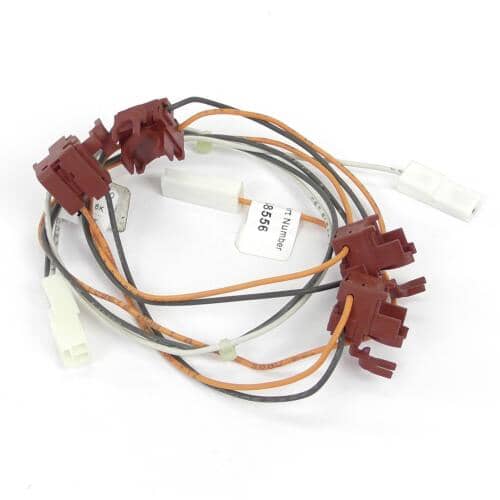

The WHIRLPOOL W10558556 is a main wire harness assembly designed for use in Whirlpool ovens and ranges. This harness routes electrical connections between the control board, ignition components, and other electrical loads within the appliance. It is a direct OEM replacement part, intended for installation by qualified appliance service technicians. The harness is identified in service documentation as the MAIN HARNESS SABAF 4S configuration, indicating compatibility with four-burner SABAF valve assemblies.

This wire harness is used in residential freestanding and slide-in gas range applications where the original harness has failed, shows heat damage, or has been recalled for inspection. Technicians typically encounter this part during control board replacements, gas valve service, or when diagnosing intermittent ignition faults traced back to wiring integrity. Install this part when the original harness shows continuity failures, melted insulation, or connector damage.

Key Features

• OEM replacement wire harness for Whirlpool oven and range units
• MAIN HARNESS SABAF 4S configuration for four-burner gas valve setups
• Manufactured to OEM dimensional and connector specifications
• Supports electrical routing between control board and range components
• Direct plug-in fitment for simplified installation

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool gas oven and range models equipped with SABAF four-burner valve assemblies. Verify the part number against the unit service label before installation.

Installation Notes

Installation should be performed by a licensed appliance technician. Disconnect power to the appliance at the wall outlet or circuit breaker before removing any panels or disconnecting any wiring. Route the replacement harness to match the original routing to avoid contact with hot surfaces or moving parts. Consult the unit wiring diagram, typically located inside the control panel or door, to confirm correct connector placement.

Technical Specifications

• Part Type: Wire Harness Assembly
• Configuration: MAIN HARNESS SABAF 4S
• Application: Oven and Range

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10558556
