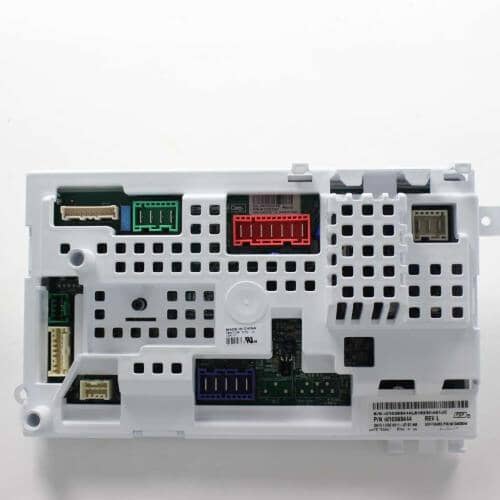

Whirlpool W10393444 Control Board 120V Washer

Product Description

The WHIRLPOOL W10393444 is a central control unit (CCU) assembly designed for high-efficiency top-load washing machines operating at 120 volts. This board manages the core wash cycle functions, including motor control, water valve sequencing, lid lock operation, and user interface communication. It serves as the primary logic board that coordinates every stage of the wash, rinse, and spin sequence. Licensed appliance technicians and experienced service pros typically install this part when diagnosing board-level failures such as error codes, cycle interruptions, or unresponsive controls.

This control board is intended for residential high-efficiency top-load washers in the WTW5700 series. It is specifically referenced as a CCU assembly for VMW HE platform machines. Typical install scenarios include replacement after failed diagnostics point to the main control board as the source of wash cycle faults, motor communication errors, or complete loss of function.

Key Features

• Central control unit (CCU) assembly managing all wash cycle logic
• Rated for 120-volt residential washer applications
• Compatible with VMW HE platform top-load washer systems
• OEM WHIRLPOOL replacement part for accurate fit and function
• Coordinates motor, valve, lid lock, and user interface signals

Compatibility

Referenced for use with WHIRLPOOL WTW5700 series high-efficiency top-load washers on the VMW HE platform operating at 120 volts.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the washer at the wall outlet or circuit breaker before beginning any disassembly. Control boards are sensitive to static discharge, so handle with care and avoid contact with board traces or components. Confirm error codes and complete diagnostic testing before replacing the board to rule out other root causes such as wiring harness faults or failed sensors.

Technical Specifications

• Voltage: 120 volts
• Part Type: Central Control Unit (CCU) Assembly
• Platform: VMW HE
• Application: High-Efficiency Top-Load Washer
• Series: WTW5700

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10393444
