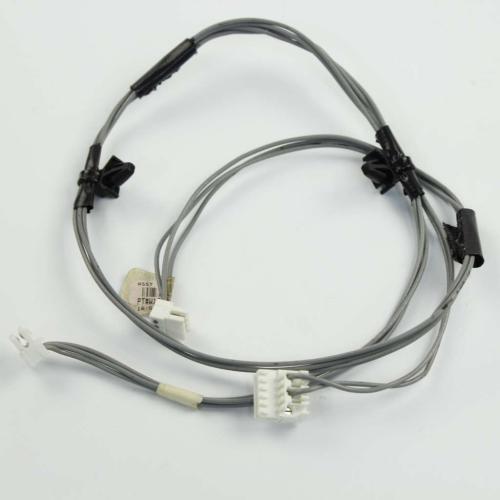

Whirlpool W10242906 Wire Harness

Product Description

The WHIRLPOOL W10242906 is a wire harness assembly used to route communication and power signals between the control board and user interface in compatible Whirlpool appliances. This harness serves as the electrical backbone connecting the main control (Sahara board) to the user interface (UI), ensuring accurate signal transmission for proper appliance operation. Licensed appliance technicians and qualified service professionals typically handle this replacement during diagnostic or repair procedures on affected units.

This wire harness is designed for use in residential Whirlpool home appliances where the communication and power connection between the main control assembly and the user interface panel has failed or become damaged. It is a direct OEM-style replacement intended to restore the original signal path between internal control components. Typical install scenarios include resolving error codes, communication faults, or intermittent control response traced to a damaged or degraded harness.

Key Features

• Routes communication and power signals from the Sahara main control board to the user interface
• OEM-specification replacement harness for reliable fit and function
• Designed to restore original electrical connectivity without modification
• Pre-terminated connectors for direct plug-in installation

Compatibility

Designed as an OEM-style replacement wire harness for compatible Whirlpool residential home appliances requiring a communication and power harness between the main control board and user interface assembly.

Installation Notes

Installation should be performed by a qualified appliance technician. Before servicing, disconnect the appliance from its power source and allow any capacitors in the control system to discharge. Inspect connector terminals for corrosion or damage before seating the new harness. Handle harness connectors carefully to avoid bending pins or overstressing locking tabs during routing and connection.

Technical Specifications

• Function: Communication and power harness, main control to user interface
• Application: Residential home appliance

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10242906
