Whirlpool W10179146 Water Inlet Valve 120V (5 x 4 x 6 Inches) Replaces W11563185 W10155357

Product Description

The Whirlpool W10179146 Water Inlet Valve is a genuine OEM replacement component. This brass valve measures 5 x 4 x 6 inches and weighs 12 ounces. It features two ports with 0.25 inch inlet and outlet connection sizes, operating at 120V. The valve includes two coils (W1=35W, W2=20W) and replaces part numbers such as W11563185 and W10155357.

• Genuine OEM replacement part for Whirlpool appliances.
• Provides proper water pressure flow for appliance operation.
• Designed to address issues such as icemaker icing problems, leaking, or water not dispensing.

Product Highlights

Genuine OEM water inlet valve compatible with specific Whirlpool, Maytag, Kenmore, KitchenAid, Amana, and Admiral refrigerator models.

Product Information

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10179146
• Country of Origin: United States

Technical Specifications

• Brand: Whirlpool
• Manufacturer: Whirlpool
• Material: Brass
• Inlet Connection Size: 0.25 Inches
• Inlet Connection Type: Waterproof
• Outlet Connection Type: Compression
• Number of Ports: 2
• Outlet Connection Size: 0.25 Inches
• Thread Type: Standard Threaded
• Connector Type: Threaded
• Replaces Part Numbers: W11563185, W10179146, W10155357, WPW10179146, 1546655, AH2360558, EA2360558, PS2360558, K-77148, AP6016381, PS11749668, WPW10179146VP

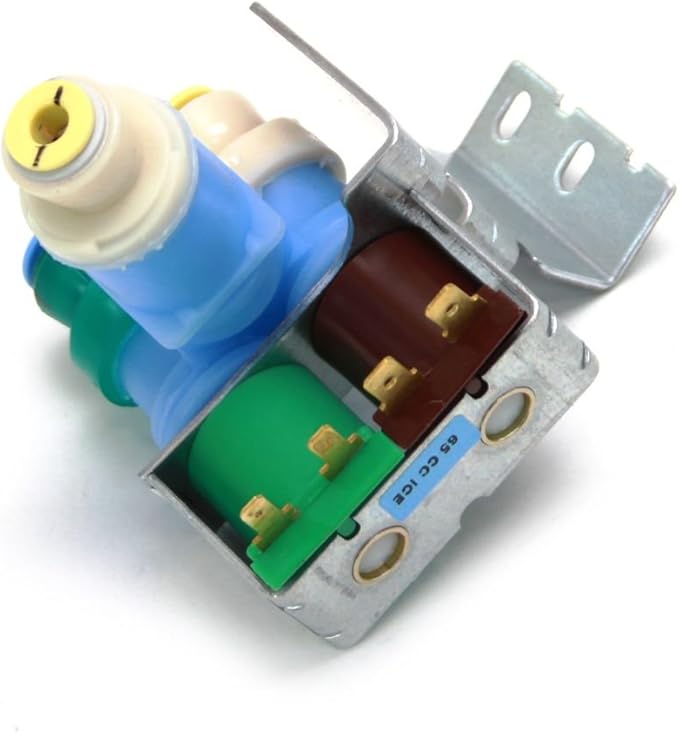

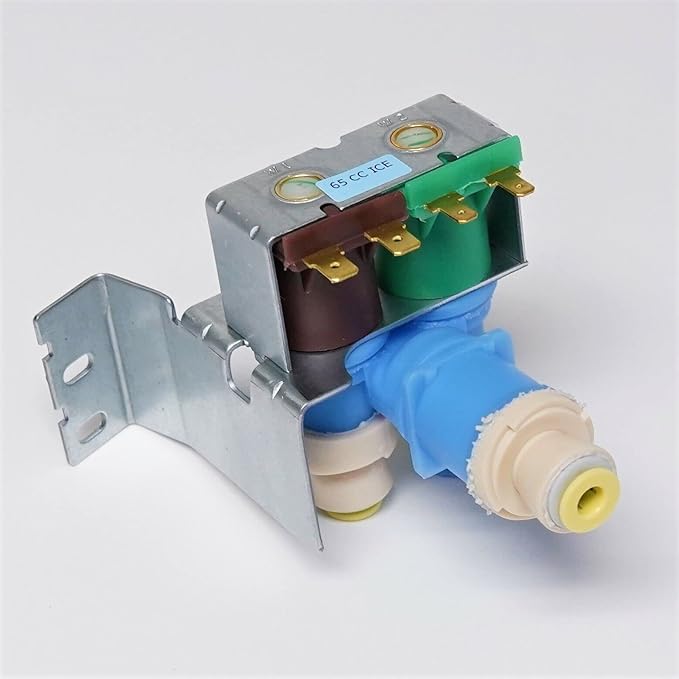

• Coil Type: 2 Coils (1 Green, 1 Red)
• Green Coil Terminal: 3/16 inch male
• Red Coil Terminal: 1/4 inch male
• Input Voltage: 120V
• Wattage W1: 35W
• Wattage W2: 20W
• Compatible Brands: Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Admiral
