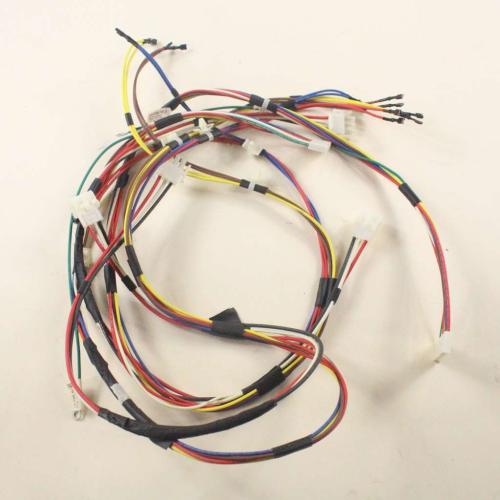

Whirlpool W10145988 Wire Harness 4 Burner Range

Product Description

The WHIRLPOOL W10145988 is a OEM wire harness designed for freestanding gas or electric ranges equipped with four burners. This harness routes low-voltage switching signals between the surface burner switches and the main control circuitry, maintaining reliable electrical continuity across the cooktop assembly. It is a direct replacement component intended for use by appliance repair technicians and experienced service professionals performing diagnostic or repair work on Whirlpool-brand cooking equipment.

This wire harness is specified for freestanding range applications with four-burner cooktop configurations. It is typically encountered during repairs involving intermittent burner response, switch replacement, or control circuit diagnostics. The harness connects the burner switch bank to downstream control components and must be routed and secured correctly to prevent abrasion or heat exposure during operation.

Key Features

• OEM Whirlpool replacement part ensuring original fit and function
• Designed for four-burner freestanding range configurations
• Supports switch-to-control circuit signal routing across the cooktop assembly
• Factory connector terminations for direct plug-in replacement

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool freestanding ranges with four-burner cooktop assemblies.

Installation Notes

Installation should be performed by a qualified appliance technician. Disconnect power to the range at the circuit breaker or by unplugging the unit before beginning any service work. Route the replacement harness away from heat sources and sharp edges, and ensure all connectors are fully seated before restoring power. Follow applicable local electrical codes when servicing residential cooking appliances.

Technical Specifications

• Component Type: Wire Harness
• Configuration: 4 Burner Freestanding Range

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: W10145988
