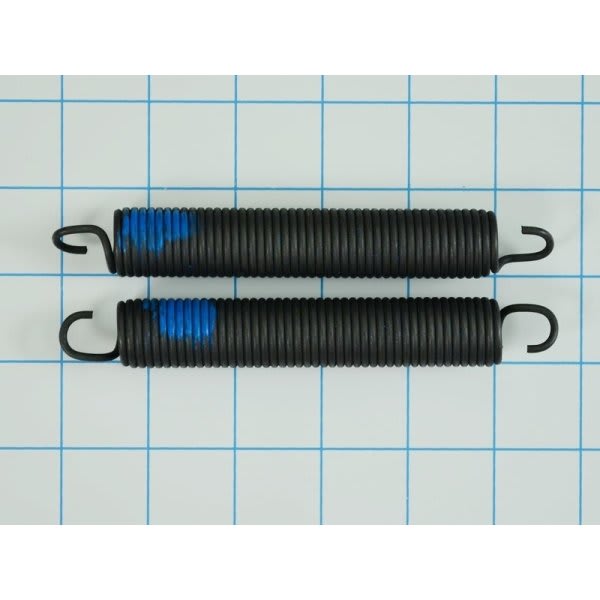

Whirlpool 9741247 Spring Replaces: 9741248

Product Description

The WHIRLPOOL 9741247 is an OEM-style replacement spring designed for use in Whirlpool appliance assemblies. Springs of this type provide tension, retention, or positional force within mechanical sub-assemblies, maintaining proper component alignment and function during operation. This part is a direct manufacturer replacement and is typically installed by appliance service technicians during routine maintenance or component failure repairs. Note that part number 9741247 has been superseded by Whirlpool part number 9741248, which is the current shipping replacement.

This spring is intended for residential appliance applications where the original 9741247 component requires replacement. The superseding part 9741248 is manufactured by Whirlpool and is considered a direct functional equivalent. Service technicians should verify fitment against the appliance model number before installation to confirm compatibility with the specific unit being serviced.

Key Features

• OEM replacement spring sourced from Whirlpool
• Superseded by Whirlpool part number 9741248, which ships in its place
• Designed for proper tension and retention within the original mechanical assembly
• Direct manufacturer replacement ensures fit and function consistency

Compatibility

Part number 9741247 has been replaced by Whirlpool part number 9741248. The updated part is manufactured by Whirlpool and ships as the current replacement. Verify the appliance model number and parts diagram before ordering to confirm fitment.

Installation Notes

Installation of appliance springs should be performed by a qualified appliance service technician. Disconnect power to the appliance at the breaker or by unplugging the unit before beginning any service work. Use appropriate hand tools and refer to the appliance service manual for disassembly procedures specific to the model being repaired. Take care when handling springs under tension to avoid injury during removal and installation.

Technical Specifications

• Superseding Part Number: 9741248

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: 9741247
