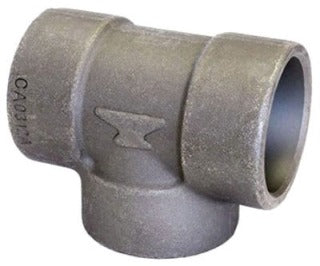

Whirlpool 69029109157 Sw Tee 2-1/2 in 3000 Lb A105

Product Description

The WHIRLPOOL 69029109157 is a 2-1/2 inch forged steel socket weld tee rated at 3000 lb, manufactured to ASTM A105 carbon steel specifications. This fitting is designed for high-pressure piping systems where a full-size branch connection is required in-line. The socket weld end configuration allows the pipe ends to be inserted into the fitting sockets and fillet-welded in place, producing a strong, leak-resistant joint suitable for demanding service conditions. Licensed pipefitters and welders install this type of fitting in industrial and commercial mechanical piping systems.

This tee is suited for use in high-pressure steam, water, oil, and gas piping systems where socket weld construction is specified. The 3000 lb pressure class makes it appropriate for medium- to high-pressure applications in both industrial facilities and commercial mechanical rooms. It is used wherever a full-size branch takeoff is needed from the main piping run at a 90-degree angle.

Key Features

• 2-1/2 inch nominal size with socket weld end connections
• 3000 lb pressure class rating for medium- to high-pressure service
• Forged carbon steel construction per ASTM A105 specification
• Full-size tee configuration provides equal-sized branch and run connections
• Socket weld design allows fillet weld attachment for a strong, permanent joint

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-1/2 inch socket weld piping systems specified to the 3000 lb pressure class and ASTM A105 material standard.

Installation Notes

Installation must be performed by a qualified pipefitter or certified welder in accordance with applicable codes, including ASME B16.11 for socket weld fittings. Depressurize and isolate the piping system completely before cutting in or replacing any fitting. Pipe ends must be inserted to the proper gap depth in the socket before fillet welding to prevent weld cracking. Verify that the pipe and fitting material grades are compatible before welding.
