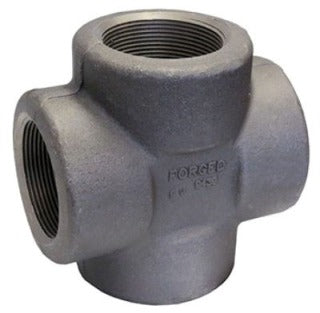

Whirlpool 69029108880 Cross Fitting 4 Inch Screwed A105

Product Description

The WHIRLPOOL 69029108880 is a 4-inch forged steel screwed cross fitting rated to 3000 pounds per square inch (psi) and manufactured to ASTM A105 carbon steel specifications. This four-way cross connects intersecting pipe runs in a single threaded fitting, distributing flow in multiple directions without additional unions or couplings. The threaded connection style allows installation without welding, making it well-suited for both new construction and retrofit piping work. Licensed plumbers and pipefitters install this fitting in high-pressure commercial and industrial piping systems where a reliable, code-compliant branch point is required.

This cross fitting is designed for use in high-pressure piping applications including steam, water, oil, and gas distribution lines. The 4-inch size accommodates larger-diameter pipe runs common in commercial mechanical rooms, industrial process piping, and heavy-duty plumbing systems. The screwed (threaded) end connection type makes it compatible with standard NPT pipe threading. Its ASTM A105 carbon steel construction handles elevated temperatures and pressures typical of demanding service environments.

Key Features

• 4-inch nominal pipe size for large-diameter threaded connections
• 3000 psi pressure rating for high-pressure service
• ASTM A105 forged carbon steel construction for strength and durability
• Screwed (NPT threaded) end connections — no welding required
• Four-way cross configuration for multi-directional flow distribution

Compatibility

Designed as an OEM-style replacement or direct-use forged steel cross fitting for 4-inch screwed high-pressure piping systems meeting ASTM A105 material requirements.

Installation Notes

Installation of high-pressure screwed pipe fittings should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the piping system completely before beginning any fitting work. Apply appropriate thread sealant or PTFE tape to NPT threads per manufacturer and code requirements. Verify system pressure rating and temperature limits before returning the line to service.
