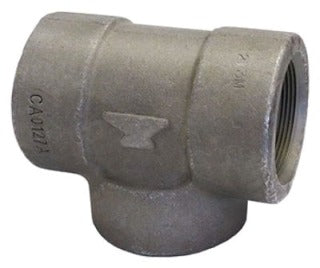

Whirlpool 69029108848 Forged Steel Threaded Tee 1-1/2 in

Product Description

The WHIRLPOOL 69029108848 is a 1-1/2 inch forged steel threaded tee rated at 3000 pounds, designed for use in high-pressure piping systems. Manufactured to ASTM A105 carbon steel standards, this fitting provides a reliable branch connection in screwed pipe assemblies. It is suited for steam, water, oil, and gas service lines where pressure integrity and material strength are critical. Licensed plumbers and pipefitters install this type of fitting in both industrial and commercial applications requiring durable, code-compliant pipe connections.

This tee is used in screwed pipe systems where a branch outlet is needed at a 90-degree angle from the main run. The 3000-pound pressure class rating makes it appropriate for medium- to high-pressure service lines found in mechanical rooms, process piping, and utility distribution systems. The ASTM A105 forged carbon steel construction meets standard requirements for ferrous fittings used across a wide range of piping services.

Key Features

• 1-1/2 inch pipe size for compatibility with standard NPT threaded connections
• 3000-pound pressure class rating for medium- to high-pressure service
• ASTM A105 forged carbon steel construction for strength and durability
• Screwed (threaded) end connections for toolless disassembly and field fitting
• Equal tee configuration provides straight-through flow with a 90-degree branch outlet

Compatibility

Designed as an OEM-style replacement or direct-fit forged steel threaded tee for 1-1/2 inch NPT screwed pipe systems rated to 3000 pounds pressure class.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes such as the IPC or ASME B31 piping standards. Depressurize and isolate the pipe section completely before removing or installing any threaded fitting. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to the fitting manufacturer's standard practice using pipe wrenches. Do not over-torque, as this can damage threads or crack the fitting body.
