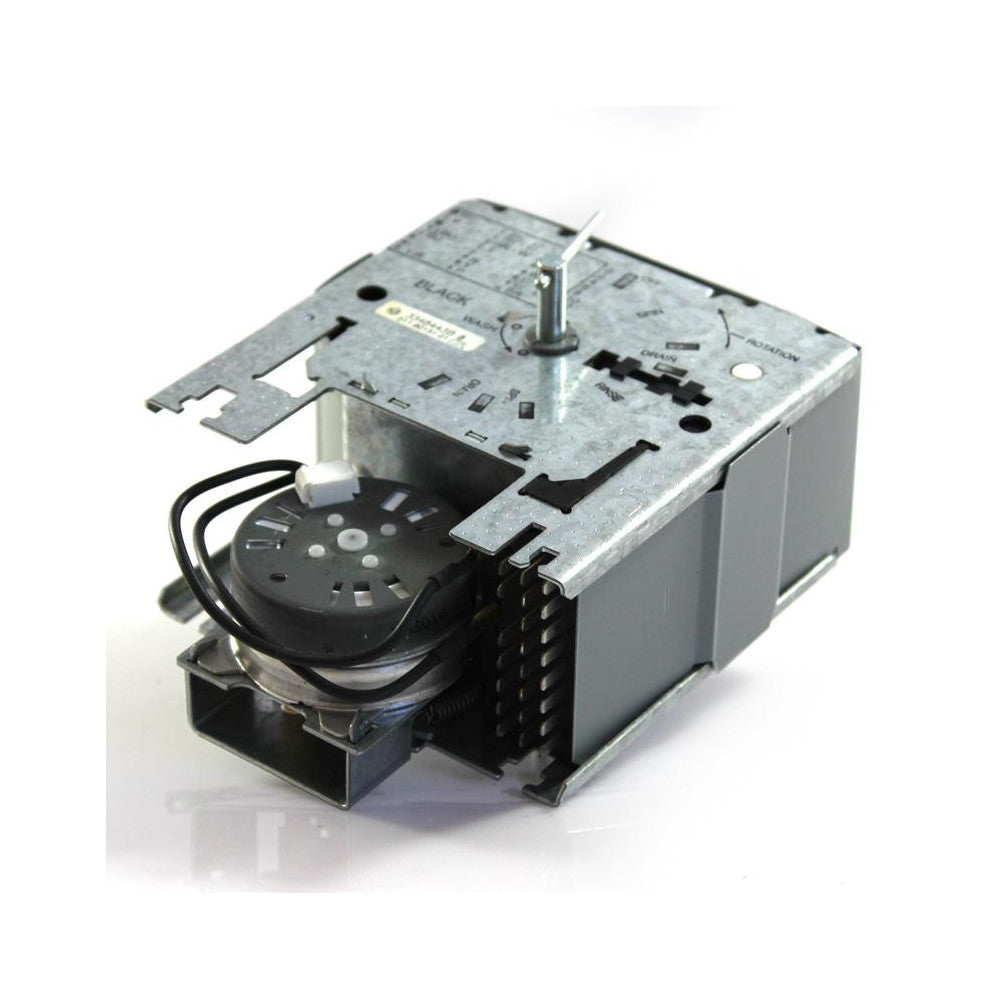

Whirlpool 3348443 Dryer Timer Replaces 8524807

Product Description

The WHIRLPOOL 3348443 is a dryer timer designed as an OEM-style replacement for residential electric and gas dryers. The timer controls the duration and sequencing of the drying cycle, signaling the motor, heat circuit, and other components at programmed intervals. Weighing 1.51 pounds, it is a direct-replacement unit intended for installation by appliance service technicians. This part supersedes part number 8524807 and is the correct replacement when the original timer has failed, resulting in a dryer that runs continuously, stops prematurely, or will not start a cycle.

This timer is used in residential dryer applications where the original control timer has worn out or become electrically faulty. It is typically found in laundry installations in single-family homes and multi-unit residential buildings. Appliance repair technicians installing this part should verify the cycle-selector switch and wiring harness condition before completing the repair, as related components often exhibit wear when the timer fails.

Key Features

• Direct OEM-style replacement for failed or intermittent dryer timers
• Supersedes part number 8524807
• Controls cycle duration and component sequencing during the drying cycle
• Compact, lightweight unit at 1.51 pounds for straightforward installation

Compatibility

This timer supersedes WHIRLPOOL part number 8524807. Designed as an OEM-style replacement timer for compatible WHIRLPOOL residential dryers. Verify the part number against the appliance model tag before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the dryer at the wall outlet or circuit breaker before beginning any disassembly. Document or photograph existing wiring connections before removing the old timer to ensure correct reassembly. Do not force the timer shaft or knob during removal, as the control panel and surrounding components can be damaged.

Technical Specifications

• Weight: 1.51 pounds

Standard Information

• Brand: WHIRLPOOL
• Manufacturer Part Number: 3348443
