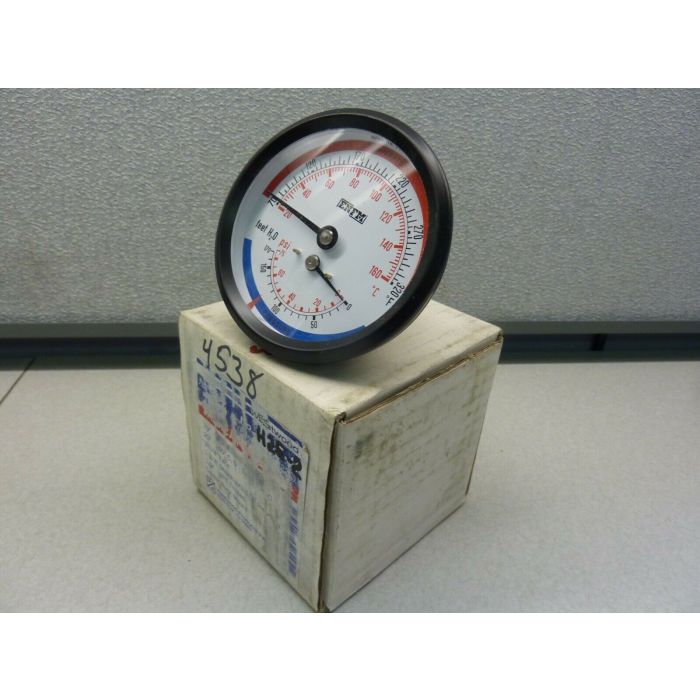

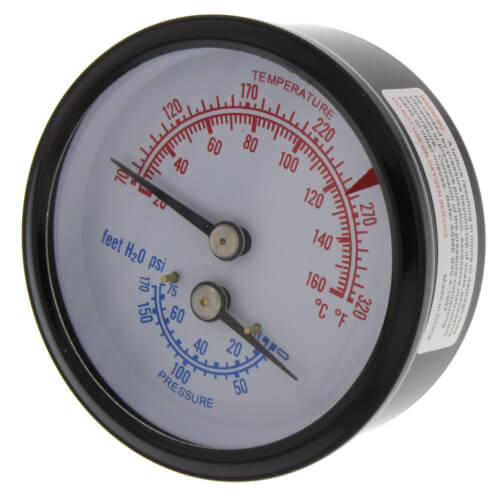

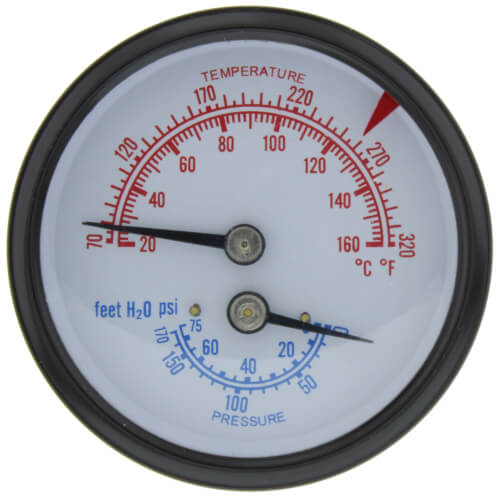

Westwood Products H25-20 Temperature and Pressure Gauge

Product Description

The Westwood Products H25-20 is a temperature and pressure gauge for measuring temperature in Fahrenheit and Celsius, as well as pressure. This gauge is designed to meet the needs of professionals needing accurate measurements.

• Measures temperature from seventy to three hundred twenty degrees Fahrenheit and twenty to one hundred sixty degrees Celsius.
• Pressure measurement range of zero to seventy-five PSI and zero to one hundred seventy feet in water.

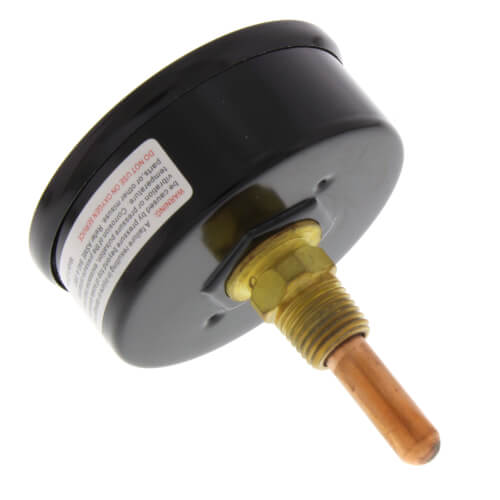

• Features a center back mount with a quarter NPT connection for easy installation.

Product Highlights

The H25-20 is suitable for various applications where temperature and pressure monitoring are essential.

Product Information

Standard Information

• Brand: Westwood Products
• MPN: H25-20

Technical Specifications

• Type: Tridicator
• Max Pressure: 75 PSI
• Min Temperature: 70°F
• Max Temperature: 320°F
• Min Temp (C): 20°C
• Max Temp (C): 160°C
• Dial Size: 2-1/2 inches
• Mounting Type: Center Back Mount (1/4 NPT)
