Westlake Pipe Fittings G606 Gasketed Pvc Coupling SDR-35 6 in

Product Description

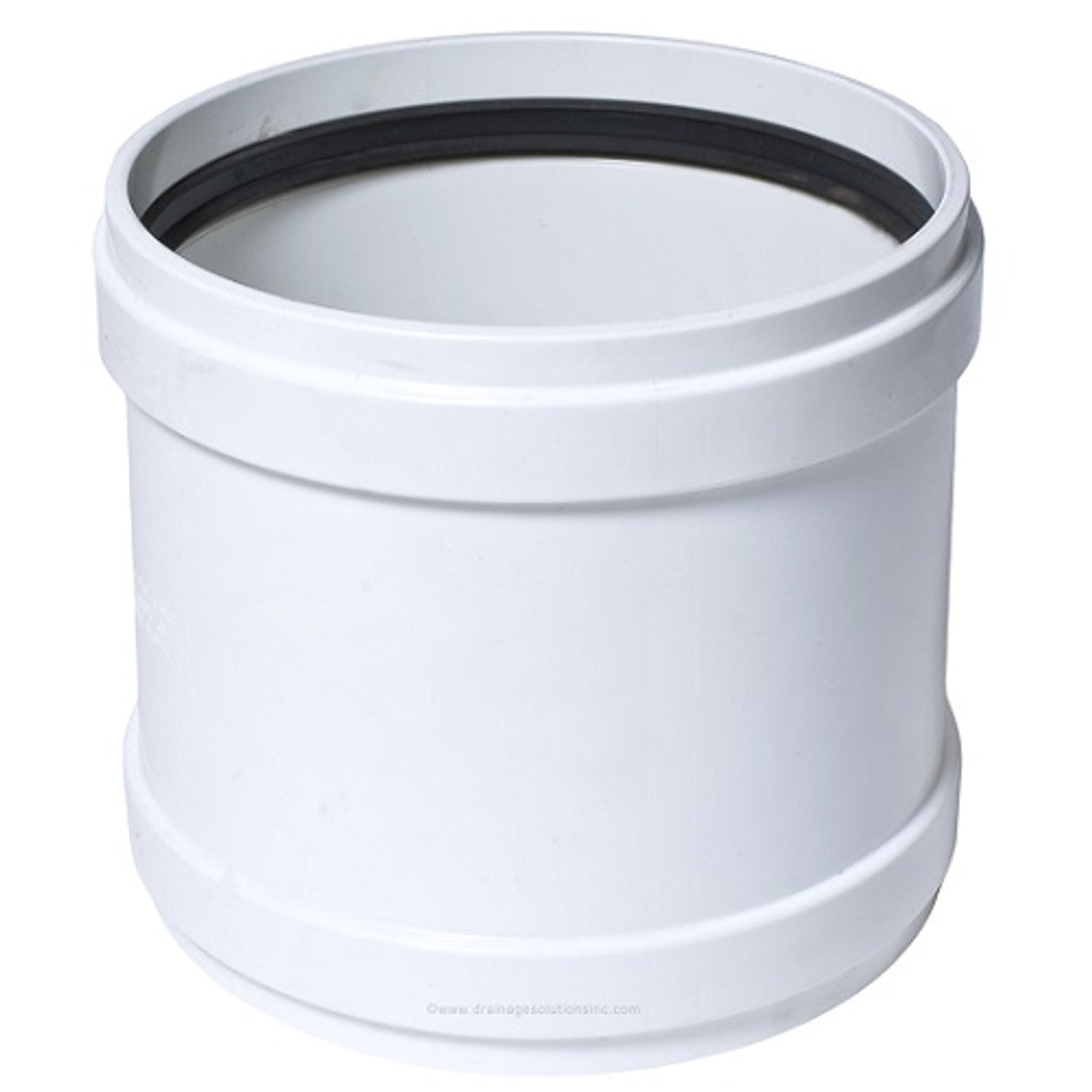

The WESTLAKE PIPE FITTINGS G606 is a 6-inch gasketed SDR-35 PVC coupling designed to join two sections of SDR-35 PVC pipe in gravity-flow drainage systems. The gasketed design uses a rubber compression gasket to create a watertight, root-resistant seal without solvent cementing. At 1.98 pounds, it is lightweight enough for single-technician handling in tight trench conditions. Licensed plumbers and pipeline contractors install this fitting in new construction and repair applications where soil movement or thermal expansion make a flexible yet sealed joint preferable to a glued connection.

This coupling is suited for residential and light commercial gravity sewer, storm drain, and drainage applications where SDR-35 pipe is specified. It is commonly installed in below-grade sanitary lateral lines, storm water conveyance runs, and site-utility drainage systems operating under typical municipal and building drain flow conditions. Its SDR-35 wall-thickness specification aligns with standard municipal and residential sewer lateral requirements across most jurisdictions.

Key Features

• 6-inch nominal pipe size fits standard SDR-35 PVC drainage pipe
• Gasketed connection provides a flexible, watertight seal without solvent cement
• SDR-35 wall thickness rating compatible with gravity-flow sewer and drain service
• Lightweight PVC construction at 1.98 pounds for easy field handling
• Order increment of 1 allows single-unit purchasing for repair or small-volume jobs

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 6-inch SDR-35 PVC gravity sewer and drainage pipe systems.

Installation Notes

Installation is performed by licensed plumbers or pipeline contractors in accordance with the International Plumbing Code and applicable local amendments. Confirm pipe ends are cut square, deburred, and lubricated with an approved rubber gasket lubricant before insertion. Do not use petroleum-based lubricants, as they degrade the rubber gasket. Backfill and compaction should follow the pipe manufacturer and local authority specifications to prevent joint deflection beyond allowable limits.

Technical Specifications

• Pipe Size: 6 inches
• Pipe Standard: SDR-35
• Connection Type: Gasketed
• Material: PVC
• Weight: 1.98 pounds
• UPC: 622454636439

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: G606
