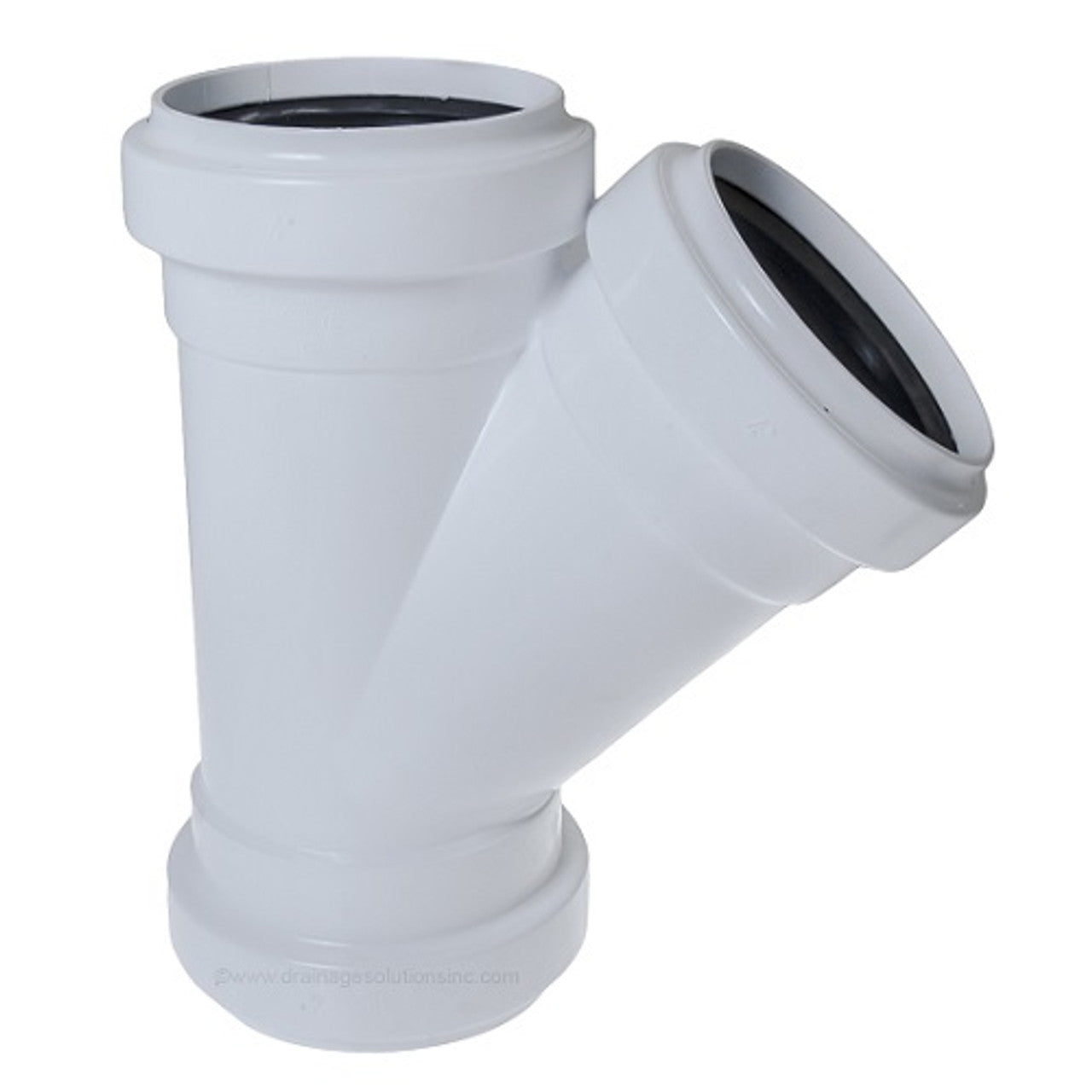

Westlake Pipe Fittings G3010 SDR-35 Pvc 45 Degree Wye 10 Inches

Product Description

The WESTLAKE PIPE FITTINGS G3010 is a 10-inch gasketed SDR-35 PVC 45-degree wye fitting designed for gravity-flow drainage, waste, and sewer piping systems. This fitting allows a branch line to join a main run at a 45-degree angle, reducing turbulence and supporting smooth flow transitions. The gasketed bell ends accept a rubber gasket for a push-on, watertight connection without solvent cement. SDR-35 wall thickness meets standard specifications for underground sewer and storm drain applications. Licensed plumbers and drainage contractors are the primary installers of this fitting.

This wye fitting is used in residential and commercial underground sewer and storm drain systems. It is suited for gravity sewer laterals, building drain connections, and municipal-style drainage work where SDR-35 PVC pipe is specified. The 45-degree wye configuration is a common choice where a gradual branch angle is required to maintain flow velocity and reduce the risk of solids settling at the junction. It is intended for non-pressure, gravity-flow service only.

Key Features

• 10-inch nominal diameter fits SDR-35 PVC pipe and fittings of the same series
• 45-degree wye angle supports smooth gravity-flow branch connections
• Gasketed bell ends allow push-on assembly without solvent cement
• SDR-35 wall thickness rated for standard underground sewer and drain service
• PVC construction resists corrosion, root intrusion chemicals, and soil acids

Compatibility

Designed as an OEM-style replacement and new-installation fitting compatible with 10-inch SDR-35 PVC sewer pipe and gasketed fittings used in gravity-flow underground drainage systems.

Installation Notes

Installation of underground sewer fittings should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local code. Ensure the trench is properly bedded and that the pipe is supported uniformly before backfilling. Gaskets must be seated and lubricated correctly to achieve a watertight joint — never install a gasketed fitting without the gasket fully engaged in the bell groove. The system should be inspected or pressure-tested per local authority requirements before burial.

Technical Specifications

• Nominal Size: 10 inches
• Fitting Type: 45-Degree Wye
• Connection Style: Gasketed Bell End
• Material: PVC
• Pipe Standard: SDR-35
• Weight: 18.03 pounds
• UPC: 622454433083

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: G3010
