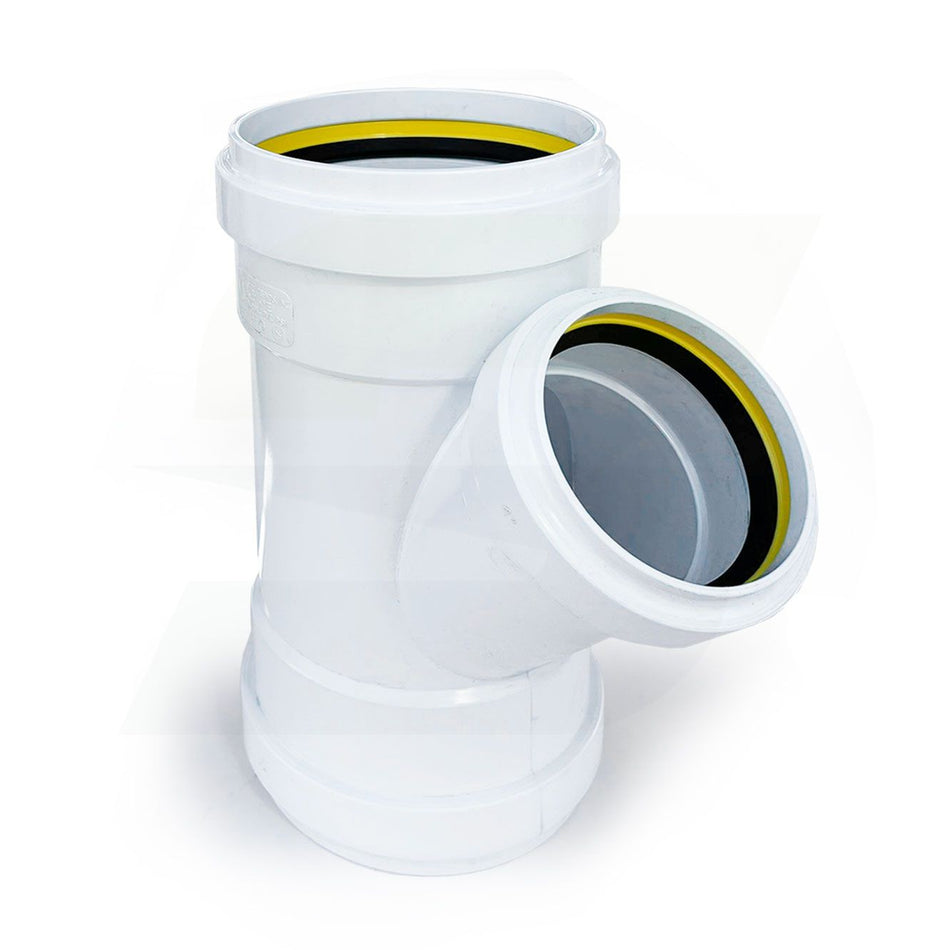

Westlake Pipe Fittings g3010-4 Pvc Sewer Wye 10x4 SDR35

Product Description

The WESTLAKE PIPE FITTINGS g3010-4 is a 10-inch by 4-inch SDR 35 PVC gasketed sewer wye designed for gravity-flow sanitary sewer and drain systems. The wye configuration allows a 4-inch branch line to tie into a 10-inch main sewer line at a lateral angle, maintaining proper flow direction and reducing turbulence. Constructed from PVC and rated to SDR 35 wall dimensions, this fitting handles standard buried sewer service loads. Gasketed bell ends accept push-on rubber gasket joints, eliminating solvent cement at the connection points. Licensed plumbers and sewer contractors install this fitting in new construction and replacement sewer work.

This fitting is used in residential and commercial sanitary sewer systems where a smaller branch lateral must connect to a large-diameter mainline. Typical applications include building sewer tie-ins, service lateral connections, and municipal-adjacent private sewer installations. The SDR 35 rating makes it appropriate for standard-depth buried applications subject to typical soil and traffic loading. All gasketed joints allow for slight field deflection and faster installation compared to solvent-welded fittings of similar size.

Key Features

• 10-inch main by 4-inch branch wye configuration for lateral sewer tie-ins
• SDR 35 wall thickness rated for standard buried gravity sewer service
• All gasketed connections for push-on rubber gasket joints — no solvent cement required at bells
• PVC construction resists corrosion, root intrusion chemicals, and common sewer gases
• Weighs 9.3 pounds — manageable for single-person trench installation

Compatibility

Designed as an OEM-style replacement and new-construction fitting for SDR 35 PVC gasketed sewer piping systems with a 10-inch mainline and 4-inch branch lateral.

Installation Notes

Installation must be performed by a licensed plumber or sewer contractor in accordance with local plumbing codes and the applicable International Plumbing Code (IPC) requirements for buried sanitary sewer piping. Isolate and dewater the existing line before making any connections in an active sewer main. Ensure the trench bed is properly compacted and bedding material meets local specification before placing the fitting. Inspect gaskets for cuts or debris before assembly, and apply approved gasket lubricant to achieve a watertight push-on joint.

Technical Specifications

• Fitting Size: 10 inches x 4 inches
• Schedule/Class: SDR 35
• Fitting Material: PVC
• Connection Type: Gasketed
• Item Weight: 9.3 pounds

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: g3010-4
