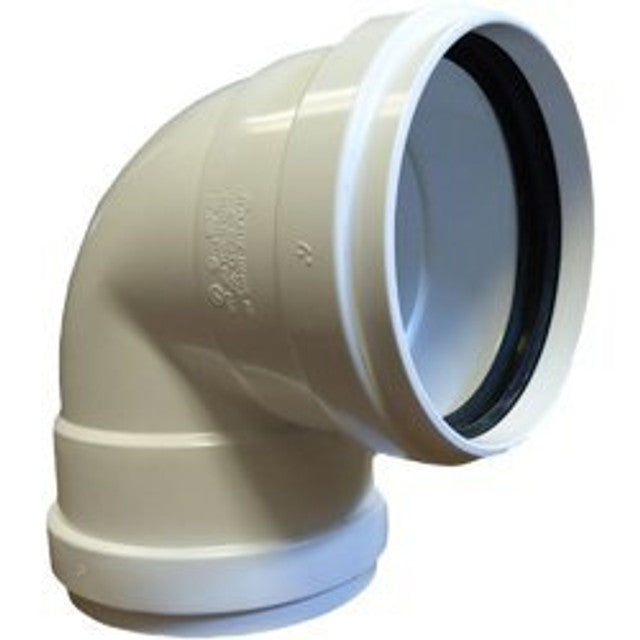

Westlake Pipe Fittings G258 SDR-35 Pvc 90 Elbow 8 in

Product Description

The WESTLAKE PIPE FITTINGS G258 is a gasketed SDR-35 PVC long turn 90-degree elbow designed for 8-inch diameter sewer and drain piping systems. The long-radius sweep reduces flow turbulence and minimizes the risk of solids settling at the bend, making it well suited for gravity-flow sewer lines. The gasketed bell end accepts a standard SDR-35 spigot with a rubber compression gasket, eliminating solvent cement at the joint and allowing for thermal movement. Plumbers and underground utility contractors install this fitting in residential and commercial drain, waste, and vent applications. At 4.9 pounds, it is manageable for single-person handling during trench work.

This elbow is used in below-grade and at-grade gravity sewer installations where a smooth, long-sweep directional change is required. Typical applications include municipal sewer service laterals, storm drainage runs, and site utility piping where SDR-35 pipe is the specified material. The gasketed joint style is the standard connection method for mainline sewer work in most jurisdictions, and this fitting integrates directly into SDR-35 pipe systems without adapters.

Key Features

• Long-turn 90-degree sweep reduces flow restriction and turbulence in gravity sewer lines
• Gasketed bell end provides a watertight compression joint without solvent cement
• SDR-35 PVC construction rated for typical sewer service loads and soil burial
• 8-inch nominal pipe size fits standard SDR-35 spigot pipe ends
• Weighs 4.9 pounds for manageable handling during underground installation

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 8-inch SDR-35 PVC sewer pipe systems using gasketed bell-and-spigot joints.

Installation Notes

Installation is performed by licensed plumbers or underground utility contractors following applicable plumbing and site utility codes such as the IPC or local sewer authority standards. Ensure the pipe spigot end is clean, properly lubricated with approved gasket lubricant, and fully seated to the reference mark before backfilling. Bedding and haunching material around the fitting should comply with the project specifications to maintain joint alignment under load. Do not use solvent cement on gasketed SDR-35 joints.

Technical Specifications

• Nominal Pipe Size: 8 inches
• Pipe Standard: SDR-35
• Material: PVC
• Joint Type: Gasketed bell end
• Fitting Type: Long turn 90-degree elbow
• Weight: 4.9 pounds
• UPC: 622454432246

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: G258
