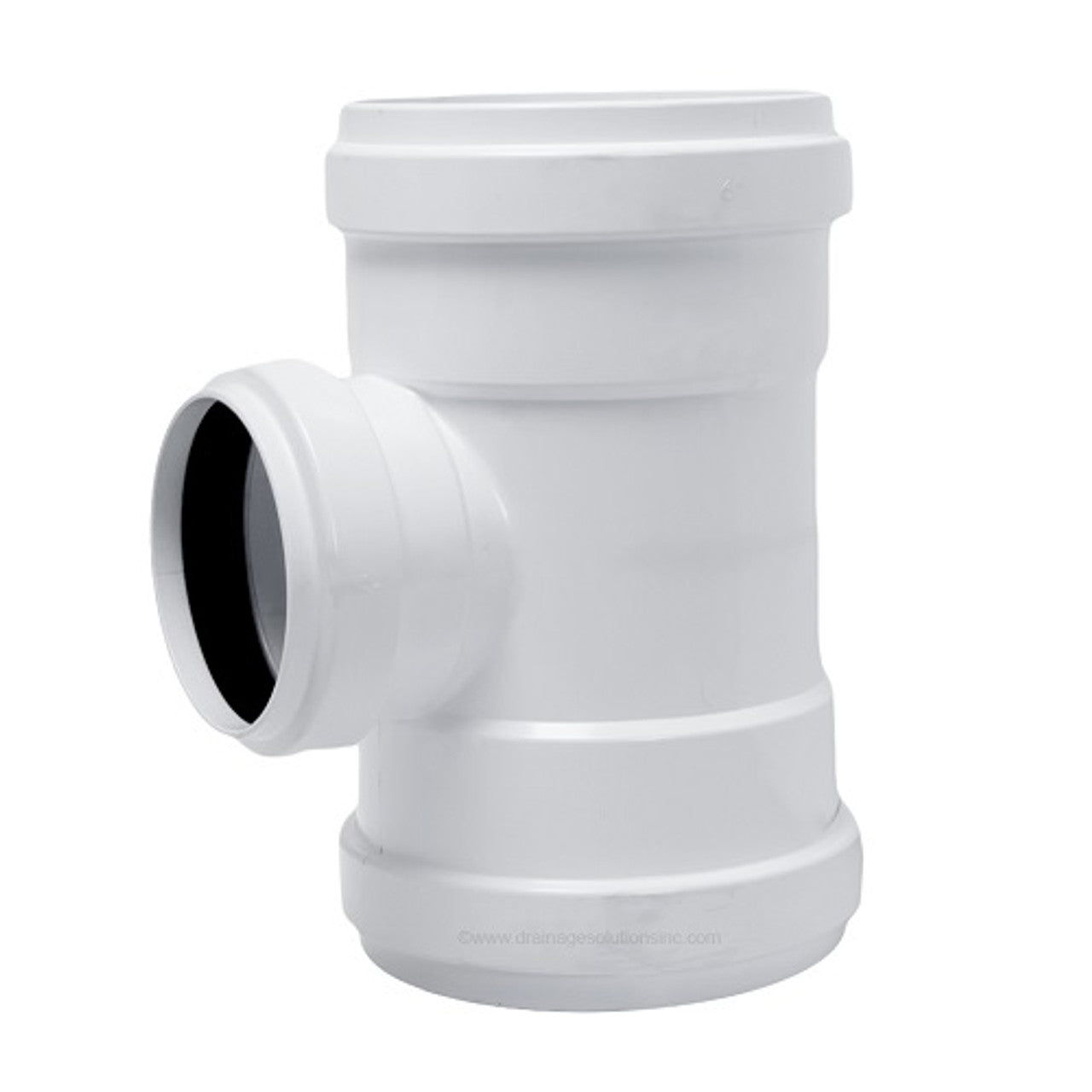

Westlake Pipe Fittings G1012-6 SDR-35 Pvc Straight Tee 12x6 in

Product Description

The WESTLAKE PIPE FITTINGS G1012-6 is a gasketed SDR-35 PVC straight tee designed for gravity-flow drainage piping systems. It accepts a 6-inch branch connection off a 12-inch mainline run, using elastomeric gasket joints that allow for quick, solvent-free assembly in the field. At 13.81 pounds, this fitting is sized for large-diameter sewer and storm drain applications. SDR-35 PVC construction provides the wall-thickness consistency and flow characteristics required for municipal and site utility work. Licensed plumbers and underground utility contractors are the primary installers.

This fitting is used in residential, commercial, and municipal underground drainage systems where a mainline run requires a branch outlet at the same elevation — a straight tee configuration. Typical install scenarios include sewer main connections, storm drain laterals, and site utility rough-in where gravity flow must be maintained throughout the run. The gasketed joint design is suited for projects requiring fast assembly or future disassembly without solvent cement.

Key Features

• Gasketed elastomeric joints eliminate solvent cementing for faster field assembly
• SDR-35 wall thickness meets standard gravity sewer and storm drain requirements
• 12-inch mainline by 6-inch branch configuration for large-diameter lateral connections
• PVC construction resists corrosion, root intrusion, and common sewer gases
• Straight tee geometry maintains mainline flow direction while adding a perpendicular branch outlet

Compatibility

Designed as an OEM-style replacement and new-installation fitting for SDR-35 gasketed PVC drainage piping systems with 12-inch mainline and 6-inch branch pipe.

Installation Notes

Installation is performed by licensed plumbers or underground utility contractors in accordance with local plumbing codes and ASTM D3034 standards for SDR-35 pipe and fittings. Ensure the trench is properly bedded and the pipe run is graded to the required slope before seating the gasket joint. Lubricate the elastomeric gasket with approved pipe lubricant only — never use petroleum-based products. Inspect the gasket for proper seating before backfilling.

Technical Specifications

• Pipe Standard: SDR-35
• Material: PVC
• Joint Type: Gasketed (elastomeric)
• Fitting Type: Straight Tee
• Mainline Size: 12 inches
• Branch Size: 6 inches
• Weight: 13.81 pounds
• UPC: 622454631038

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: G1012-6
