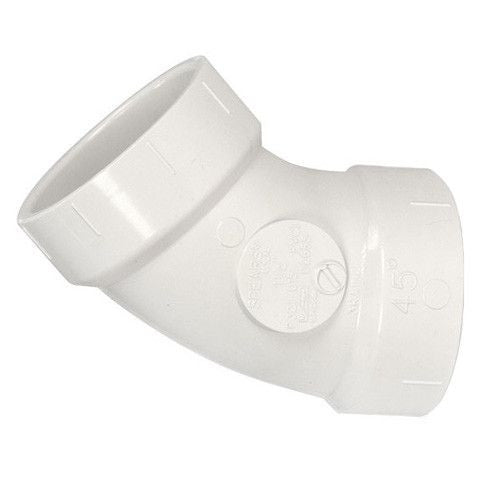

Westlake Pipe Fittings dwv-d321-060 Dwv Pvc 45 Degree Elbow 6 in

Product Description

The WESTLAKE PIPE FITTINGS dwv-d321-060 is a 6-inch, 45-degree DWV elbow fitting manufactured from PVC. This 1/8 bend is built to Schedule 40/STD wall thickness and uses hub-style ends on both sides, accepting solvent weld connections. It is designed for drain, waste, and vent (DWV) piping systems in residential and commercial construction. Plumbers and pipefitters install this fitting where a 45-degree change of direction is required in a gravity-flow drainage run. The SCH 40 wall thickness meets standard pressure and load ratings for DWV applications.

This fitting is appropriate for above-ground and in-wall DWV installations in residential and light commercial buildings. It is commonly used in soil stacks, branch drains, and vent piping where a 45-degree offset is needed. The hub ends accept standard 6-inch PVC DWV pipe, and the solvent weld joint method provides a code-compliant, permanent connection. This fitting carries a DWV designation and is not intended for pressurized water supply service.

Key Features

• 45-degree (1/8 bend) change of direction for DWV drain and vent lines
• 6-inch nominal pipe size suits large-diameter branch and stack applications
• Hub-style ends on both sides for solvent weld connections
• Schedule 40/STD wall thickness meets standard DWV code requirements
• PVC construction resists corrosion and chemical attack from typical drain waste
• DWV-rated — suitable for gravity-flow drain, waste, and vent systems

Compatibility

Designed as an OEM-style replacement and new-construction fitting for Schedule 40 PVC DWV piping systems using 6-inch nominal pipe with hub-end solvent weld connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local code. Shut off the water supply and ensure the drain system is clear before cutting into an existing line. Clean and prime both the pipe end and hub socket before applying PVC solvent cement, and allow full cure time before restoring flow. Do not use this fitting on pressurized water supply lines.

Technical Specifications

• Nominal Pipe Size: 6 inches
• Angle: 45 degrees (1/8 bend)
• Schedule: 40/STD
• End Type: Hub x Hub
• Connection Method: Solvent Weld
• Material: PVC
• DWV Rated: Yes
• UNSPSC Code: 40172808

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: dwv-d321-060
