Westlake Pipe Fittings dwv-d112-015 Dwv Pvc Cleanout 1-1/2 in

Product Description

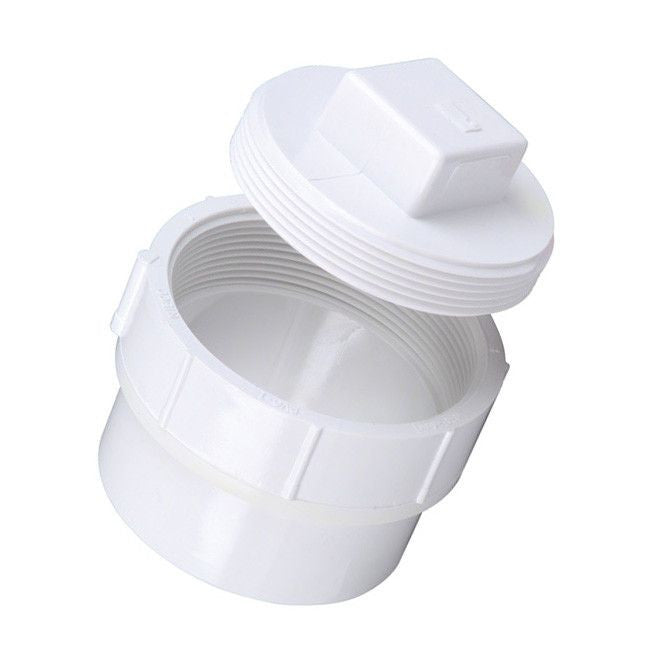

The WESTLAKE PIPE FITTINGS dwv-d112-015 is a two-piece DWV PVC cleanout adapter and plug sized for 1-1/2 inch drain, waste, and vent piping systems. The adapter accepts the threaded plug on one end while the opposite end features a spigot connection for inline installation. The plug includes a raised head that allows for easy engagement and removal with standard hand tools or a wrench. This fitting is designed for licensed plumbers and experienced pipe installers working on residential or light commercial drain and waste lines.

This cleanout assembly is suited for installation in DWV systems where routine access to the drain line is required for inspection, snaking, or clearing blockages. The spigot end of the adapter connects directly into a hub fitting or pipe coupling in the drain line. The 1-1/2 inch size is common in lavatory, kitchen, and branch drain applications. This part is also referenced under part number P105X-015.

Key Features

• Two-piece assembly: threaded cleanout plug and spigot-end adapter
• Raised plug head for simplified opening and closing with standard tools
• Spigot outlet on adapter for direct insertion into hub fittings
• PVC construction suitable for DWV drain and waste service
• 1-1/2 inch nominal size for branch and fixture drain lines

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch PVC DWV drain, waste, and vent piping systems. Also referenced as P105X-015.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable plumbing codes such as the IPC or UPC. Solvent-weld the spigot end of the adapter into the receiving hub using approved PVC primer and cement before threading in the plug. Always relieve system pressure and ensure the drain line is clear before opening the cleanout plug. Do not overtighten the threaded plug, as PVC threads can crack under excessive force.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Material: PVC
• Fitting Type: Cleanout Adapter and Plug
• Connection Type: Spigot x Threaded
• Application: DWV (Drain, Waste, Vent)

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: dwv-d112-015
