WESTLAKE PIPE & FITTINGS 410-020 2 in. PVC Schedule 40 Street Elbow

Product Description

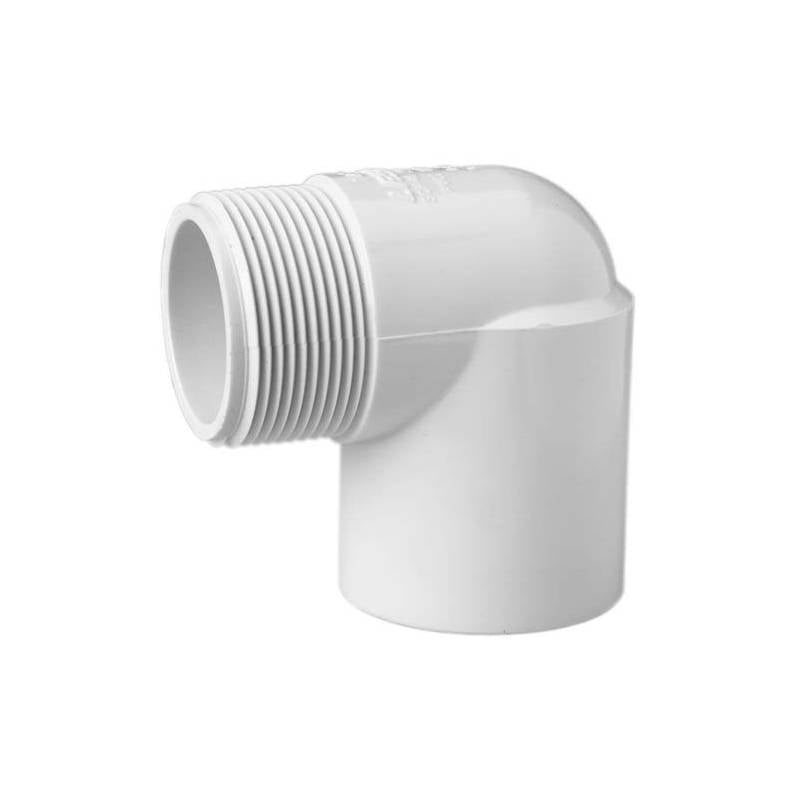

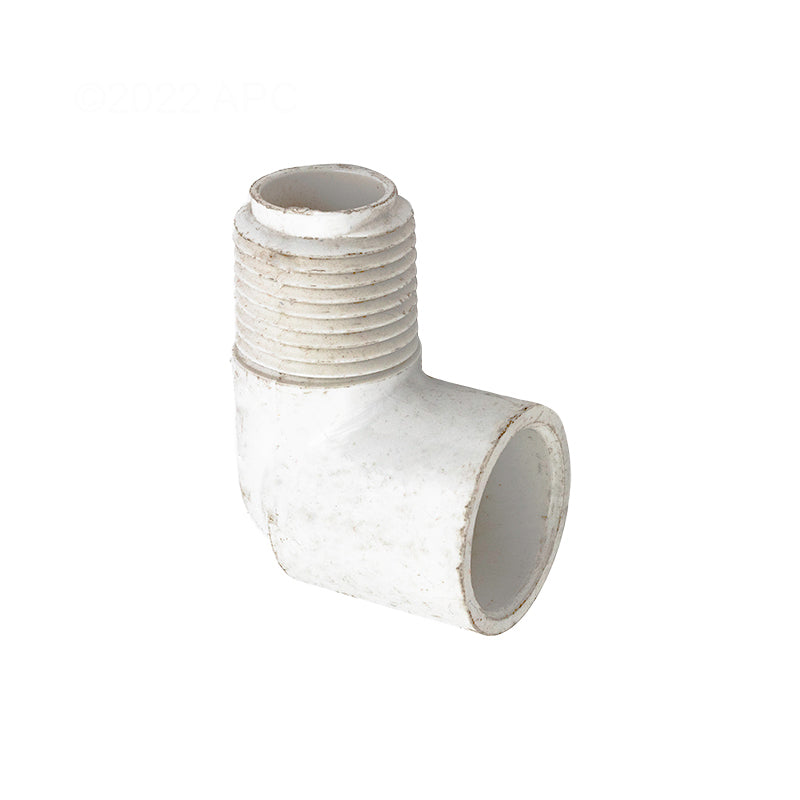

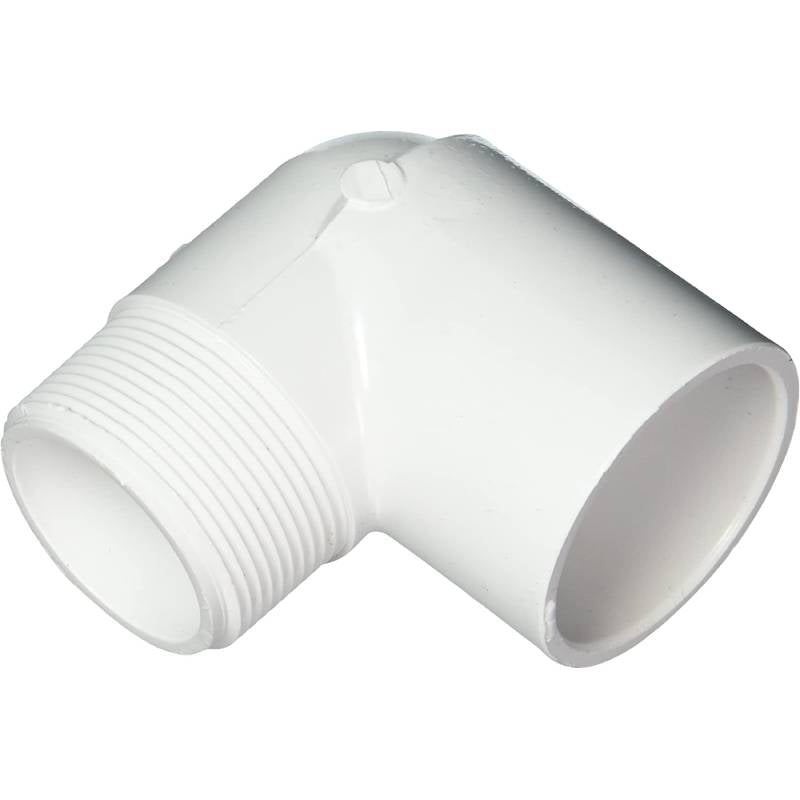

The WESTLAKE PIPE & FITTINGS 410-020 is a two-inch Schedule 40 PVC street elbow fitting. It is designed for various plumbing applications. This fitting features a socket and MNPT connection type. The product is certified for use in potable water systems and has a maximum operating pressure of one hundred seventy psi at seventy-three degrees Fahrenheit.

• Constructed with durable PVC material.
• Smooth interior wall to minimize pressure loss.
• NSF approved for potable water use.

Product Highlights

This street elbow fitting helps to change the direction of piping in a plumbing system with minimal pressure loss, ensuring efficient flow.

Product Information

Standard Information

• Manufacturer: WESTLAKE PIPE & FITTINGS
• Model Number: 410-020

Technical Specifications

• Fitting Type: Elbow, 90 Degrees
• Pipe Fitting Material: PVC
• Fitting Schedule/Class: Schedule 40
• Pipe Size: 2 inches
• Fitting Connection Type: Socket x MNPT
• Max Pressure: 170 psi at 73 degrees F
• Color: White
• Max Temperature: 140 degrees F
• Standards: ASTM D2466, D1784, F1498, NSF/ANSI 14 & 61
• Dimensions LxWxH: 8 x 8 x 9 inches
