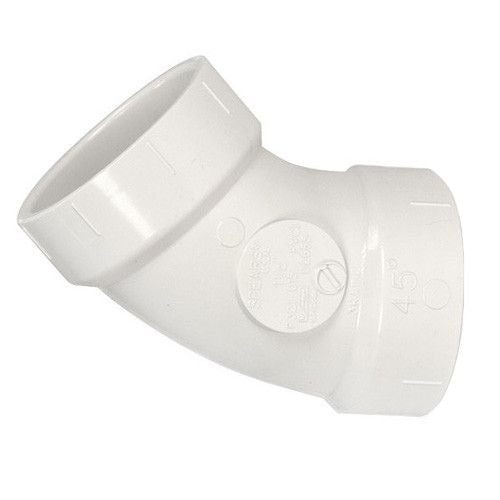

Westlake dwv-d321-020 Dwv Pvc 45 Degree Elbow 2 in Hub

Product Description

The WESTLAKE PIPE FITTINGS dwv-d321-020 is a 2-inch PVC 45-degree elbow fitting designed specifically for drain, waste, and vent (DWV) piping systems. Also referred to as a 1/8 bend in the trade, this fitting redirects flow at a 45-degree angle within a DWV line. Both ends feature hub-style connections, accepting spigot or plain-end pipe for solvent-weld joining. Built to Schedule 40/STD wall thickness, it meets the structural demands of residential and light commercial DWV installations. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This fitting is suited for residential and commercial drain, waste, and vent piping where a 45-degree change in direction is required. Common applications include branch offsets, stack connections, and horizontal drain line routing within walls, floors, and ceilings. The hub configuration allows for straightforward solvent-cement assembly in new construction and renovation work. Its DWV-rated construction makes it appropriate for gravity-flow drain systems rather than pressure piping service.

Key Features

• 45-degree (1/8 bend) angle for DWV drain line direction changes
• Hub x Hub end connections for solvent-weld assembly
• Schedule 40/STD wall thickness for standard DWV service
• PVC construction rated for DWV applications
• 2-inch nominal pipe size

Compatibility

Designed as an OEM-style DWV fitting for use with 2-inch Schedule 40 PVC pipe in gravity-flow drain, waste, and vent systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Clean and deburr pipe ends before applying primer and solvent cement rated for PVC DWV fittings. Allow adequate cure time before pressurizing or flowing water through the joint. This fitting is intended for gravity-flow DWV service only and is not rated for pressure piping applications.

Technical Specifications

• Nominal Pipe Size: 2 inches
• Schedule: 40/STD
• End Type: Hub x Hub
• Material: PVC
• Bend Angle: 45 degrees (1/8 bend)
• DWV Rated: Yes
• UNSPSC Code: 40172808

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: dwv-d321-020
