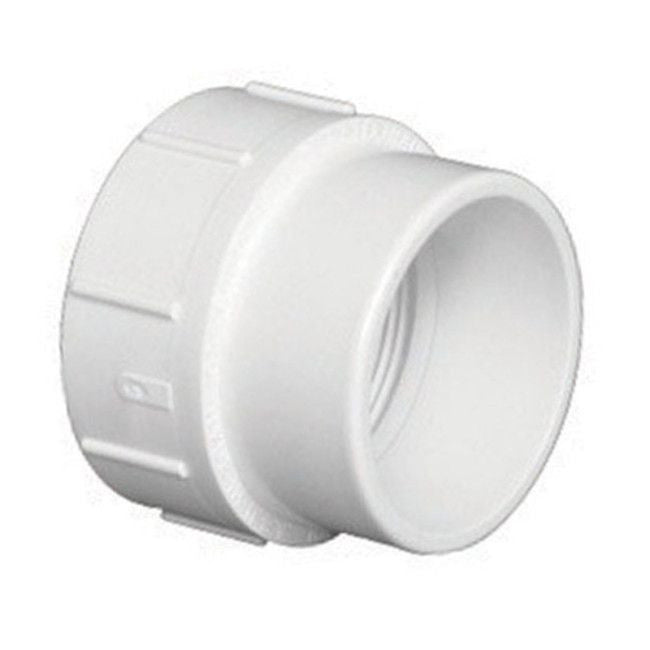

Westlake dwv-d105-020 Dwv Cleanout Adapter 2 in Sch 40 Pvc

Product Description

The WESTLAKE PIPE FITTINGS dwv-d105-020 is a 2-inch PVC cleanout adapter fitting designed for drain, waste, and vent (DWV) piping systems. It features a spigot inlet and a female NPT (FNPT) outlet, allowing a threaded cleanout plug to be installed at a clean-out access point in the drain line. Built to Schedule 40 / STD wall thickness, this fitting delivers the structural integrity required for residential and light commercial DWV applications. Plumbers and pipefitters install this adapter when setting up accessible cleanout points in gravity-drain systems.

This fitting is suited for residential and commercial DWV installations where cleanout access is required by plumbing code. The spigot end inserts into a standard DWV hub connection, while the FNPT end accepts a threaded cleanout plug. Typical applications include horizontal drain runs, building drain cleanouts, and stack base cleanout assemblies. Installation follows standard PVC solvent-weld procedures on the spigot end and threaded connection on the female NPT side.

Key Features

• 2-inch nominal pipe size fits standard DWV piping
• Spigot x FNPT end configuration for solvent-weld inlet and threaded plug outlet
• Schedule 40 / STD wall thickness for DWV service
• PVC construction provides corrosion resistance in drain and vent service
• DWV-rated for drain, waste, and vent applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 40 PVC DWV piping systems in residential and light commercial plumbing applications.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) or applicable local codes. Shut off the water supply and ensure the drain line is clear before cutting into an existing system. Solvent-weld the spigot end into the receiving hub using PVC primer and cement per manufacturer guidelines; do not apply solvent cement to the threaded FNPT end. Thread a cleanout plug into the FNPT outlet hand-tight, then snug with a wrench — do not overtighten PVC threads.

Technical Specifications

• Nominal Pipe Size: 2 inches
• End Connections: Spigot x FNPT
• Schedule: 40/STD
• Material: PVC
• Application: DWV (Drain, Waste, Vent)
• UNSPSC Code: 40171708

Standard Information

• Brand: WESTLAKE PIPE FITTINGS
• Manufacturer Part Number: dwv-d105-020
