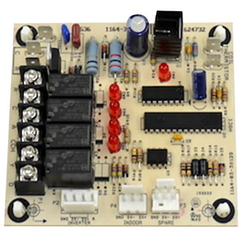

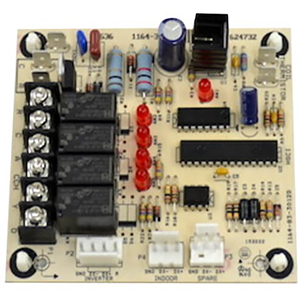

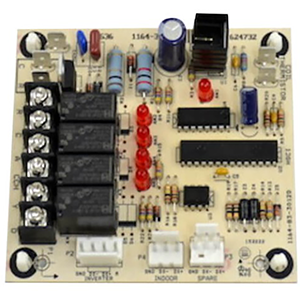

Westinghouse 920920 Gas Furnace Control Board

Product Description

The WESTINGHOUSE 920920 is a direct-replacement gas furnace control board designed to restore proper operation in both condensing and non-condensing gas furnace systems. The control board manages the sequencing of ignition, inducer, blower, and heating stages within the furnace control circuit. It is installed by licensed HVAC technicians during routine service calls or as part of a system fault diagnosis. This board is suited for residential gas furnace applications where the original board has failed due to component damage or age-related deterioration.

This control board is used in both condensing and non-condensing gas furnace configurations. It fits the 061-24B, 076-24B, 076E-35C, and 102E-45D furnace models as specified by the manufacturer. These furnace types are commonly found in residential settings where natural gas or propane is the primary heat source. HVAC service professionals replace this board when diagnosing control faults, lockout conditions, or failed staging operations in these specific units.

Key Features

• Direct replacement for the original control board in specified condensing and non-condensing furnace models
• Compatible with multiple furnace model designations from WESTINGHOUSE
• Manages ignition sequencing, blower control, and heating stage operation
• Designed for straightforward board-swap installation in qualifying furnace applications

Compatibility

Designed for use on the 061-24B, 076-24B, 076E-35C, and 102E-45D condensing and non-condensing gas furnace models as specified by the manufacturer.

Installation Notes

Control board replacement should be performed by a qualified HVAC technician. Before servicing, shut off electrical power to the furnace at the disconnect switch or breaker and set the gas valve to the off position. Document all existing wiring connections before removing the failed board to ensure accurate reconnection. Follow applicable local codes and manufacturer service documentation during installation.

Technical Specifications

• Type: Control Board
• Used On: 061-24B, 076-24B, 076E-35C, 102E-45D Condensing and Non-Condensing Gas Furnace

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 920920
