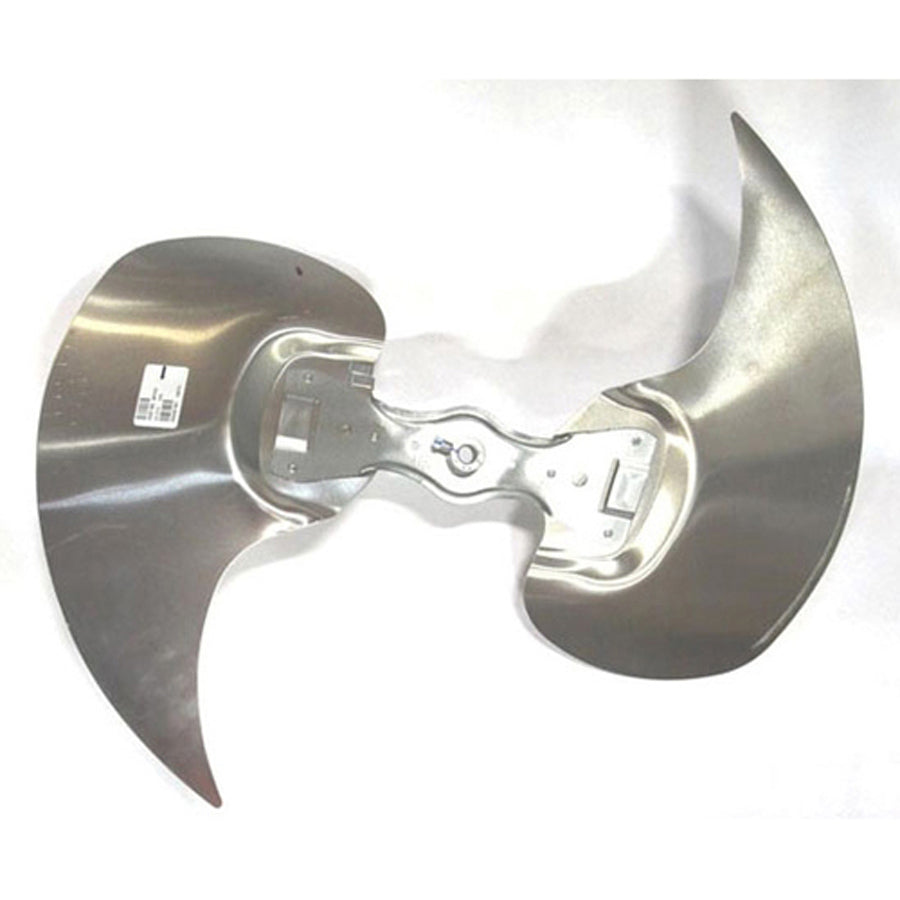

Westinghouse 667319R Ac Fan Blade 24in 2-blade Cw Pitch 27

Product Description

The WESTINGHOUSE 667319R is a 2-blade condenser fan blade designed for use in air conditioner applications. Measuring 24 inches in diameter with a 1/2-inch bore, this blade operates at up to 1200 RPM and is configured for clockwise rotation when viewed from the air-discharge side. The 27-degree pitch delivers the airflow angle required for proper condenser section performance. Licensed HVAC technicians and refrigeration mechanics install this type of blade as a direct replacement when an existing fan blade becomes cracked, unbalanced, or damaged during service.

This fan blade is sized and pitched for residential and light commercial air conditioning condensing units. It is suited for outdoor condenser fan assemblies where a 24-inch, 2-blade configuration with clockwise rotation and a 27-degree pitch is specified. The 1/2-inch bore fits standard condenser fan motor shafts common in split-system and package unit applications. Always verify rotation direction, pitch, diameter, and bore against the existing blade or OEM specifications before installation.

Key Features

• 24-inch diameter provides broad airflow coverage for condenser heat rejection
• 27-degree blade pitch optimized for condenser fan duty
• Clockwise rotation configuration matches standard condenser fan motor orientation
• 1/2-inch bore fits common condenser fan motor shaft sizes
• Rated to 1200 RPM for reliable, sustained condenser fan operation
• 2-blade design balances airflow performance with reduced motor load

Compatibility

Designed as an OEM-style replacement fan blade for residential and light commercial air conditioning condensing units requiring a 24-inch diameter, 2-blade, clockwise-rotation blade with a 27-degree pitch and 1/2-inch bore.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the condensing unit before removing the fan blade assembly. Confirm shaft set-screw torque and blade-to-shroud clearance after installation to prevent contact at operating speed. Verify rotation direction before returning the unit to service.

Technical Specifications

• Diameter: 24 inches
• Bore: 0.5 inches
• Number of Blades: 2
• Blade Pitch: 27 degrees
• Rotation: Clockwise
• Maximum Speed: 1200 RPM
• Application: Air Conditioner Condenser Fan

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 667319R
