Westinghouse 667262R 18 Inch Outdoor Fan Blade 3-blade Cw

Product Description

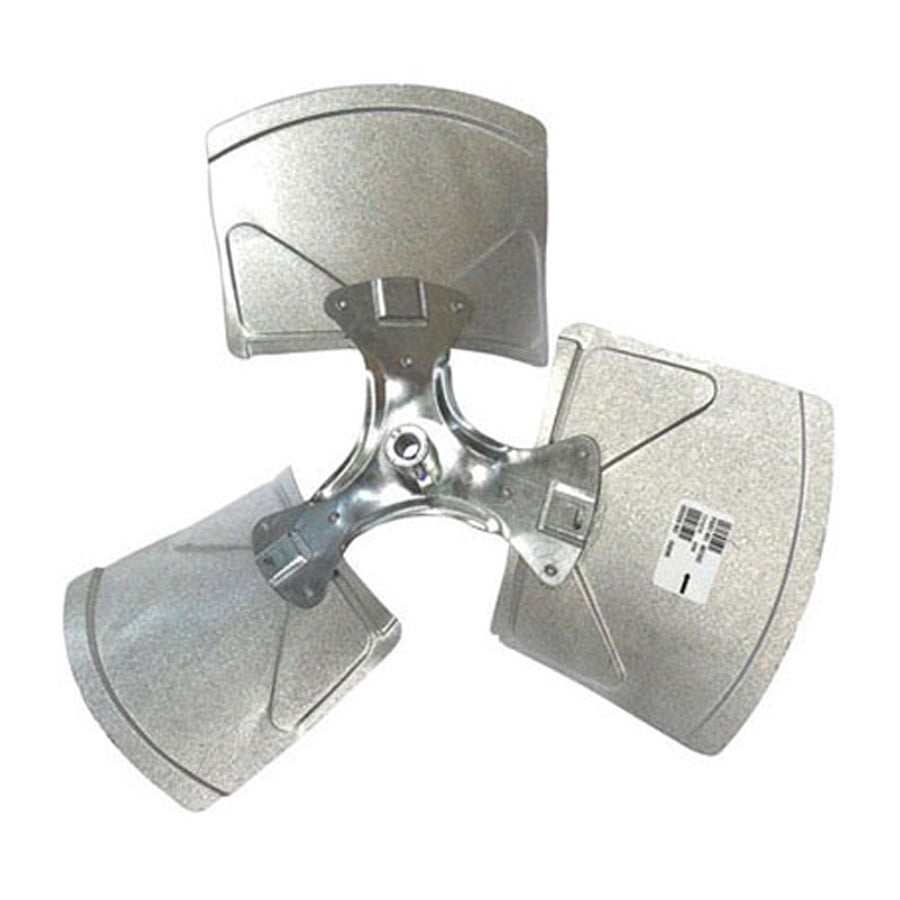

The WESTINGHOUSE 667262R is an 18-inch diameter, 3-blade outdoor condenser fan blade designed for split system air conditioners. It features a 1/2-inch bore and spins at 1140 RPM in a clockwise rotation when viewed from the front. This blade is an OEM-style replacement component installed by licensed HVAC technicians during routine maintenance, motor replacements, or condenser section repairs. Proper airflow across the condenser coil depends on the correct blade pitch, rotation direction, and diameter, making an exact-match replacement essential for maintaining rated system efficiency.

This fan blade is used on the S5BA split system air conditioner series. It is suited to residential outdoor condenser units where the existing blade shows signs of cracking, chipping, or pitch deformation. Replacing a damaged outdoor fan blade restores proper condenser airflow, prevents high-pressure lockouts, and protects the compressor from heat stress. HVAC technicians performing seasonal tune-ups or condenser motor swaps should verify bore size and rotation direction before installation.

Key Features

• 18-inch diameter provides the correct condenser airflow sweep for compatible units
• 1/2-inch bore fits standard condenser fan motor shaft sizes
• 1140 RPM rated operating speed matches OEM condenser motor requirements
• Clockwise rotation ensures proper airflow direction through the condenser coil
• 3-blade design balances airflow volume with motor load

Compatibility

Designed for use on the S5BA split system air conditioner series. Verify bore diameter, blade diameter, and rotation direction against the existing blade or equipment nameplate before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all power to the outdoor unit at the disconnect box before accessing the condenser fan assembly. Confirm clockwise rotation orientation and hub set-screw torque per the motor manufacturer's specification before restoring power. Do not operate the unit with a cracked, bent, or improperly secured blade.

Technical Specifications

• Blade Diameter: 18 inches
• Bore Size: 0.5 inches
• Number of Blades: 3
• Rotation Direction: Clockwise
• Rated Speed: 1140 RPM
• Application: Outdoor Condenser Fan

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 667262R
