Westinghouse 661128R Inshot Burner Gas Furnace

Product Description

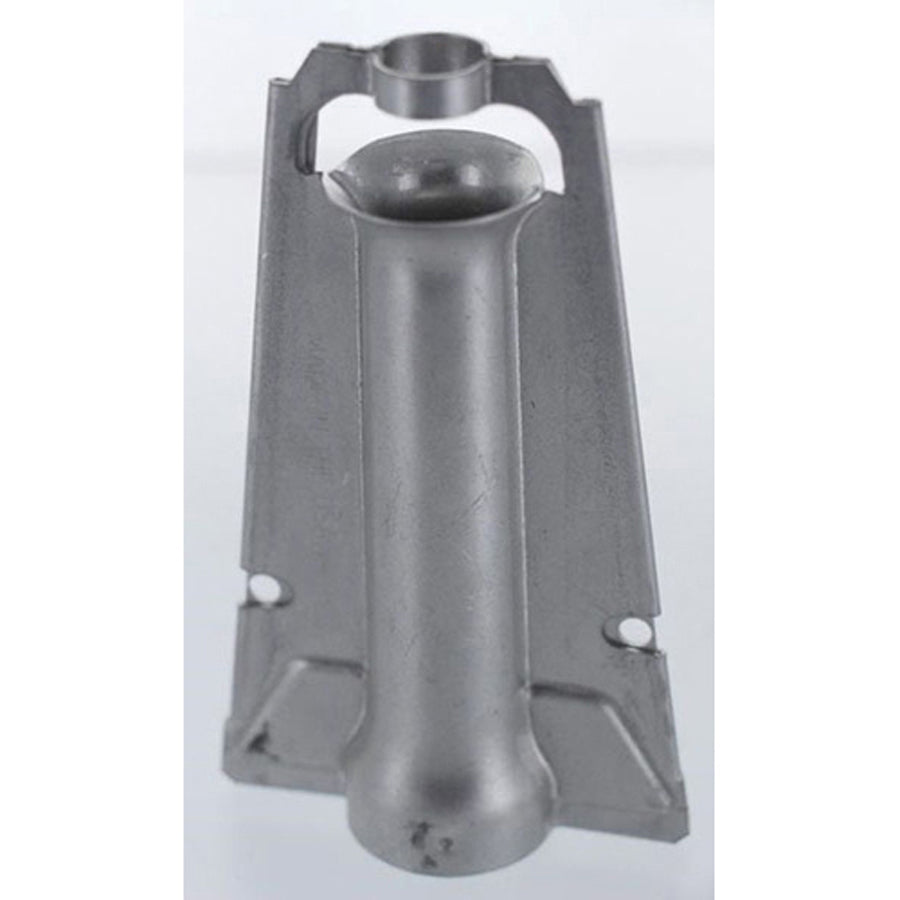

The WESTINGHOUSE 661128R is an inshot burner designed as a direct replacement component for condensing gas furnaces. Measuring 5 inches in length, this burner delivers fuel-air mixture into the heat exchanger for combustion. It is installed by licensed HVAC technicians during burner replacement or heat exchanger service on residential condensing gas furnace systems. The inshot design directs the flame straight into the tubular heat exchanger cells, which is the standard configuration for many high-efficiency condensing furnaces. This part is an OEM-style replacement intended to restore proper combustion performance.

This inshot burner is used in condensing gas furnace applications where the original burner has failed, warped, or corroded. It fits the 080-35C, 080-35C-1, 100-VC, and 100-VC-1 condensing gas furnace models. These are residential gas furnace platforms requiring a 5-inch inshot burner. HVAC technicians servicing these units during heating season failures or planned maintenance will find this a direct fit replacement component.

Key Features

• Inshot burner design directs flame into tubular heat exchanger cells
• 5-inch length matches OEM fitment for listed condensing furnace models
• Replacement-grade component for restoring proper combustion function
• Compatible with both the standard and dash-1 variants of listed furnace models

Compatibility

Fits the following condensing gas furnace models: 080-35C, 080-35C-1, 100-VC, and 100-VC-1.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut off gas supply and disconnect electrical power to the furnace before beginning any burner service. Inspect the burner compartment and heat exchanger cells for debris or scaling before installing the replacement burner. Follow all local codes and the furnace manufacturer service instructions when reinstalling and relighting the appliance.

Technical Specifications

• Type: Inshot Burner
• Length: 5 inches
• Application: Condensing Gas Furnace

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 661128R
