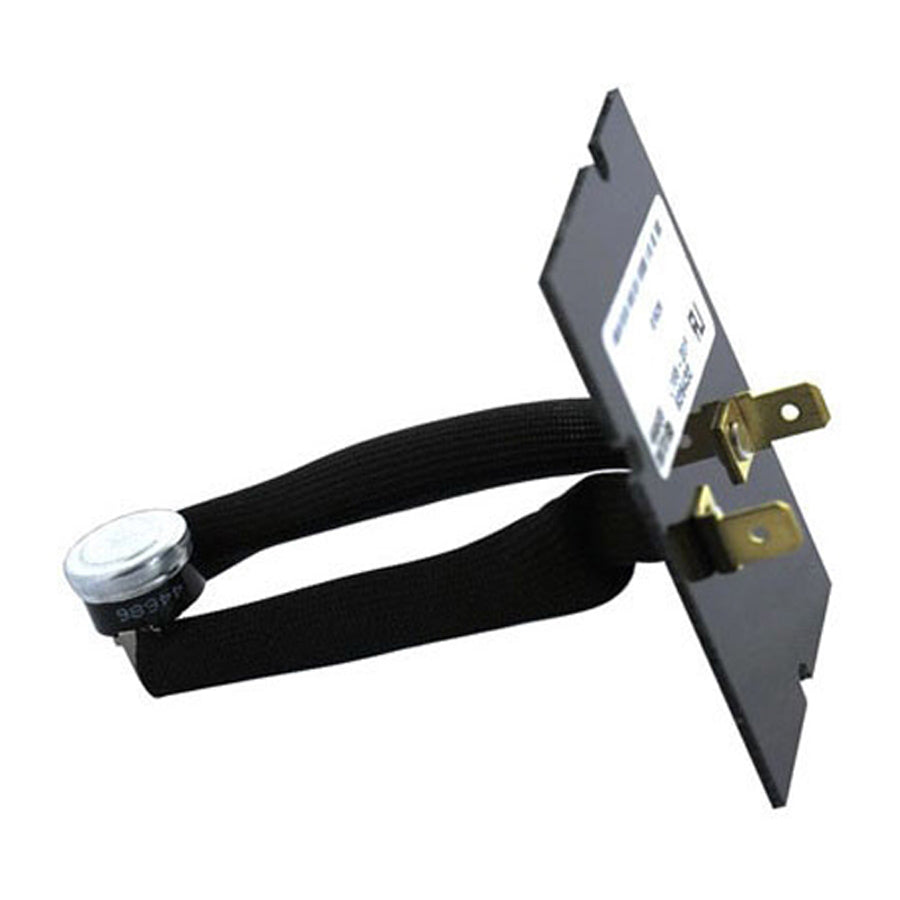

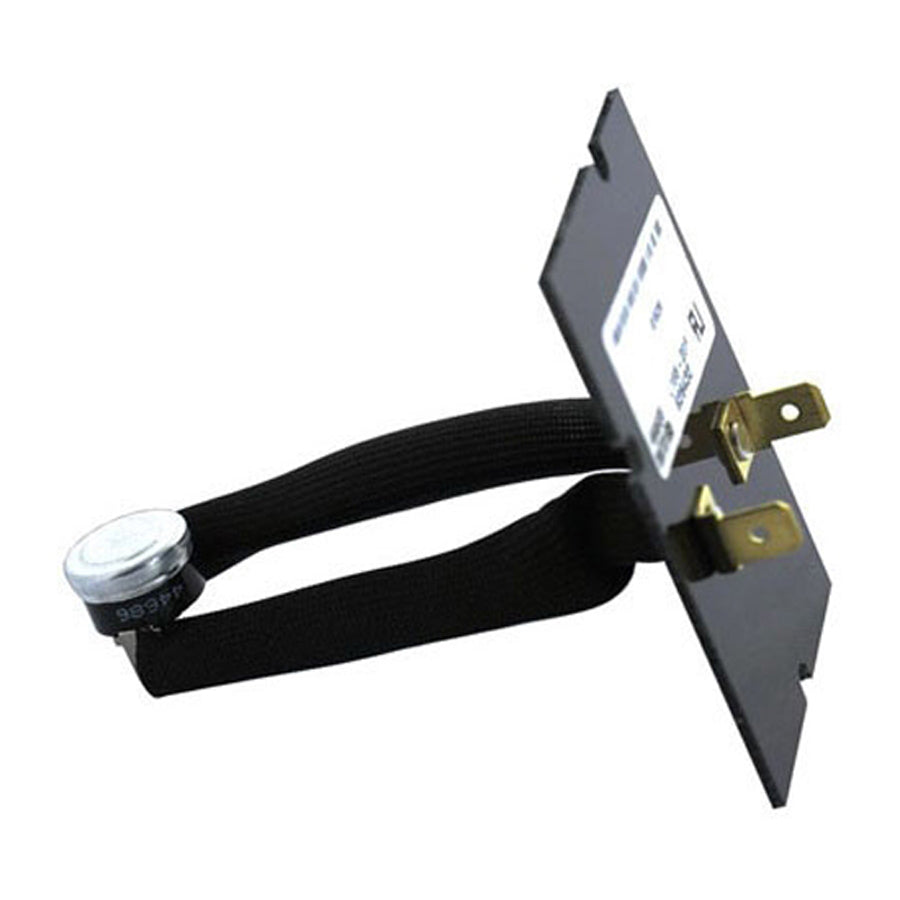

Westinghouse 626432R Fan Limit Switch 145-165F Auto Reset

Product Description

The WESTINGHOUSE 626432R is an auto-reset fan limit switch rated for air conditioner applications. It operates across a temperature range of 145 to 165 degrees F and uses a 3-inch insert to mount into the equipment. The switch controls fan operation by opening and closing circuits based on sensed temperature, protecting the system from operating outside safe thermal limits. Licensed HVAC technicians typically source this switch as a direct service replacement during seasonal maintenance or component failure diagnosis.

This fan limit switch is designed for use on air conditioning equipment where temperature-actuated fan control is required. The auto-reset function means the switch returns to its normal operating position once temperatures fall back within the rated range, eliminating the need for manual reset after a thermal event. The 3-inch insert format is a common configuration found in residential and light commercial air conditioner installations.

Key Features

• Auto-reset operation — returns to normal state once temperature drops back within range
• Temperature range: 145 to 165 degrees F
• 3-inch insert for standard equipment mounting
• Designed specifically for air conditioner fan limit control
• Replaces failed or out-of-spec fan limit switches without manual reset procedures

Compatibility

Designed as an OEM-style replacement fan limit switch for air conditioning equipment requiring a 145 to 165 degrees F auto-reset switch with a 3-inch insert configuration.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before removing the existing switch or handling any electrical connections. Verify the replacement switch matches the temperature rating and insert depth of the original component before installing. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting the circuit.

Technical Specifications

• Function: Fan Limit Switch
• Reset Type: Auto Reset
• Temperature Range: 145 to 165 degrees F
• Insert Length: 3 inches
• Application: Air Conditioner

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 626432R
