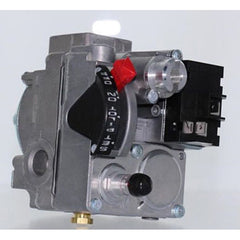

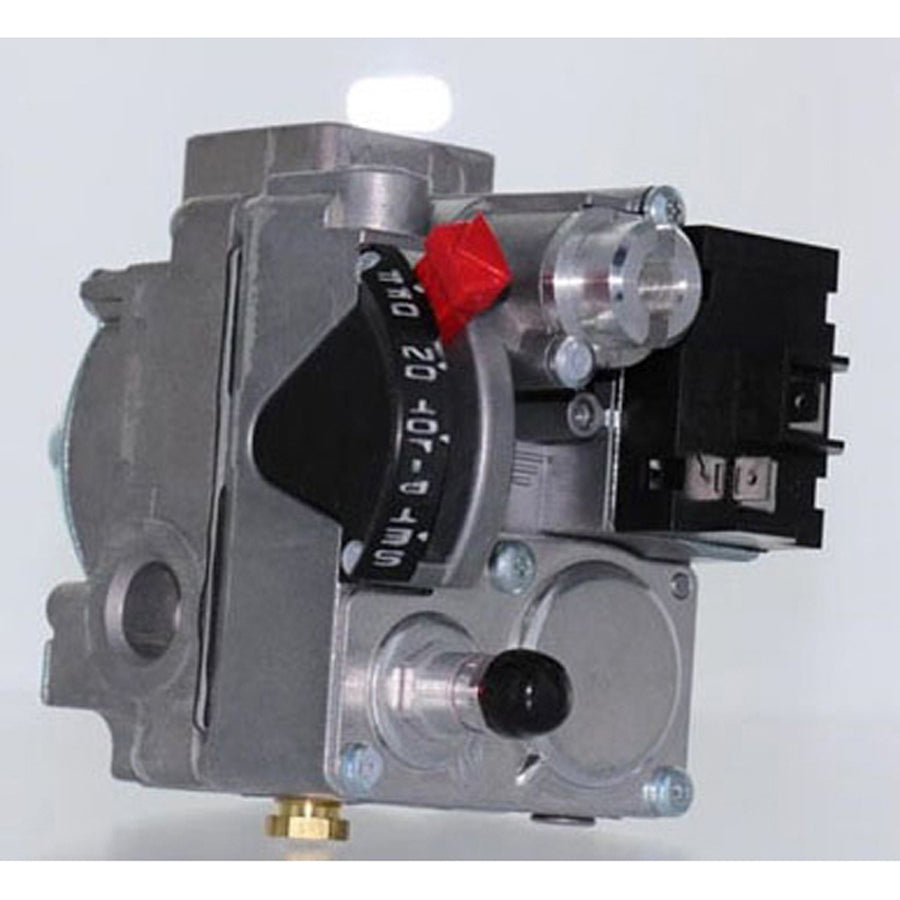

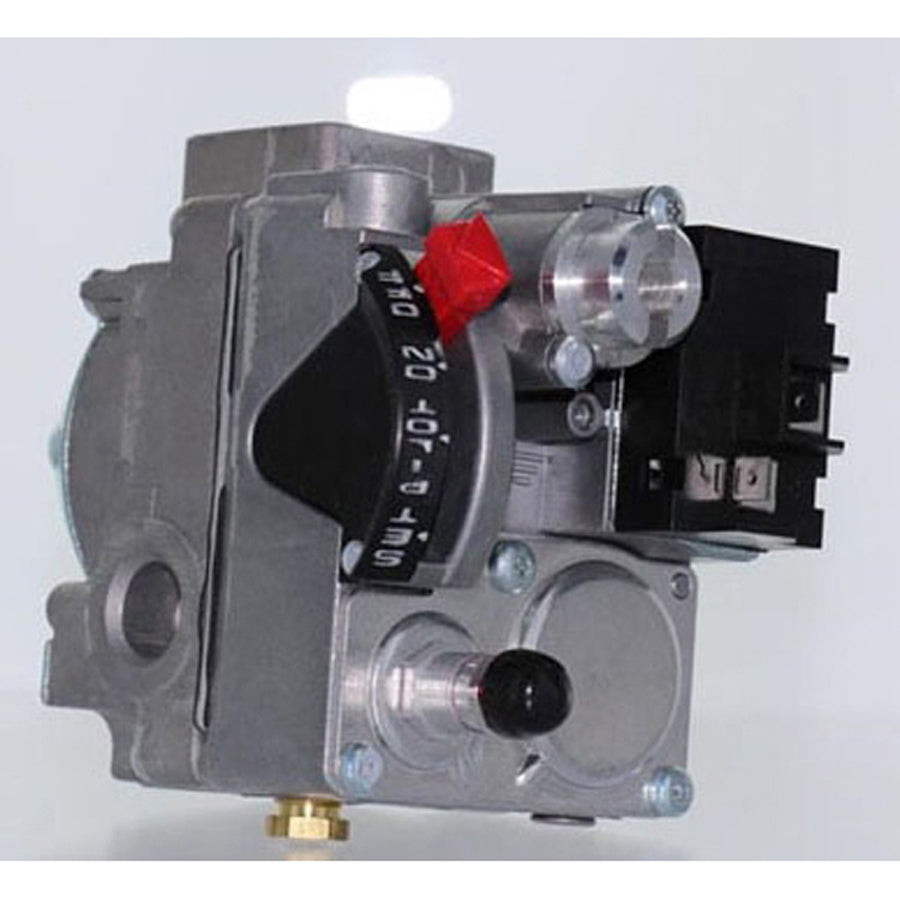

Westinghouse 624583R Furnace Gas Valve 1/2 Inch 7200ER

Product Description

The WESTINGHOUSE 624583R is a furnace gas valve designed as a direct replacement component for M1GH and M1G series gas furnaces. This valve controls the flow of gas to the burner assembly, regulating ignition and steady-state operation during heating cycles. It is a 7200ER series valve with a 1/2 inch inlet connection and operates within a pressure range of 3.3 inches water column to 10 inches water column. Licensed HVAC technicians and gas heating service professionals handle replacement and installation of this component.

This gas valve is specified for use in M1GH and M1G gas furnace applications. These furnaces are typically found in residential forced-air heating systems. The 1/2 inch connection size and 7200ER series designation make this valve a recognized fit for the stated furnace models. Installations are found in both upflow and counterflow furnace configurations depending on the specific unit. Service professionals should verify the inlet size and pressure rating against the existing valve before ordering.

Key Features

• 7200ER series gas valve rated for residential furnace applications
• 1/2 inch inlet connection for standard gas line fitment
• Operating pressure range of 3.3 inches water column to 10 inches water column
• Direct replacement for the original valve in M1GH and M1G gas furnaces
• Controls gas flow to burner assembly during ignition and steady-state heating

Compatibility

Specified for use on M1GH and M1G gas furnaces as stated in manufacturer documentation. Verify inlet size, outlet size, and pressure specifications against the existing valve and furnace rating plate before installation.

Installation Notes

Gas valve replacement must be performed by a licensed HVAC or gas service technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the service valve and disconnect electrical power to the furnace before removing the existing valve. Use an approved gas-rated thread sealant on all threaded connections and pressure-test all joints for leaks after installation. Do not attempt to adjust internal valve pressure settings beyond what is specified on the furnace rating plate.

Technical Specifications

• Type: Gas Valve
• Series: 7200ER
• Inlet Connection Size: 1/2 inch
• Pressure Range: 3.3 inches water column to 10 inches water column
• Used On: M1GH, M1G Gas Furnace

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 624583R
