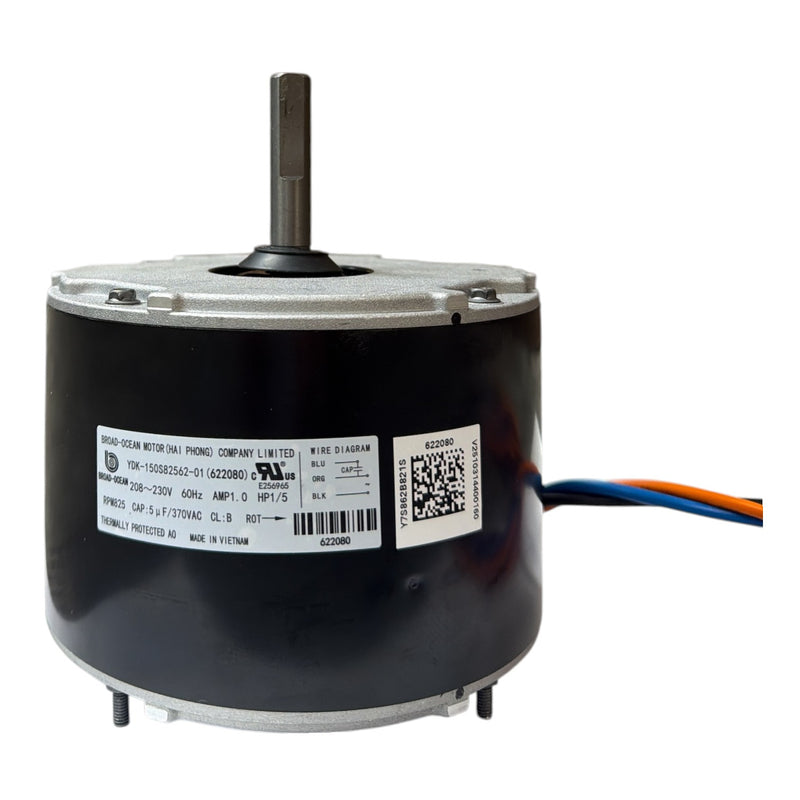

Westinghouse 622080 Condenser Fan Motor 1/5 Hp 825 Rpm

Product Description

The WESTINGHOUSE 622080 is an OEM-replacement condenser fan motor designed for use in residential air-conditioning and heat-pump condensing units across multiple Nordyne-family brands. Rated at 1/5 HP and 825 RPM, this single-speed motor operates on 208-230 volts at 50/60 Hz and draws 1.0 amp. It carries a Class B insulation rating and is configured for clockwise rotation when viewed from the lead end (CWLE). Licensed HVAC technicians install this motor as a direct replacement for units where the original condenser fan motor has failed or is being proactively serviced.

This motor is used in residential condensing units manufactured under the Nordyne family of brands. It serves as the OEM replacement for obsolete part 622080 and is compatible with equipment marketed under the Nortek, Nordyne, Frigidaire, Gibson, Intertherm, Miller, Maytag, Broan, Westinghouse, Tappan, Nutone, and Revolve brand names. It is a suitable fit for condensing units where a 1/5 HP, 825 RPM, single-speed condenser fan motor is specified.

Key Features

• 1/5 HP output with single-speed 825 RPM operation
• 208-230 volt dual-voltage rating supports most residential condensing applications
• 50/60 Hz compatibility suits both standard grid frequencies
• CWLE rotation (clockwise from lead end) matches OEM fan blade orientation
• Class B insulation rating for reliable thermal performance
• Direct OEM-style replacement for obsolete part 622080

Compatibility

Compatible with condensing units sold under the Nortek, Nordyne, Frigidaire, Gibson, Intertherm, Miller, Maytag, Broan, Westinghouse, Tappan, Nutone, and Revolve brand names. Replaces obsolete part 622080.

Installation Notes

This motor is installed by licensed HVAC technicians. Disconnect and lock out all power to the condensing unit before removing the fan assembly. Verify that the replacement motor shaft diameter, mounting configuration, and rotation direction match the original before installation. Confirm correct capacitor rating for the replacement motor, as capacitor requirements may differ from the original unit.

Technical Specifications

• Horsepower: 1/5 HP
• Speed: 825 RPM
• Voltage: 208-230 volts
• Frequency: 50/60 Hz
• Amperage: 1.0 amp
• Number of Speeds: 1
• Rotation: CWLE (clockwise from lead end)
• Insulation Class: Class B

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 622080
