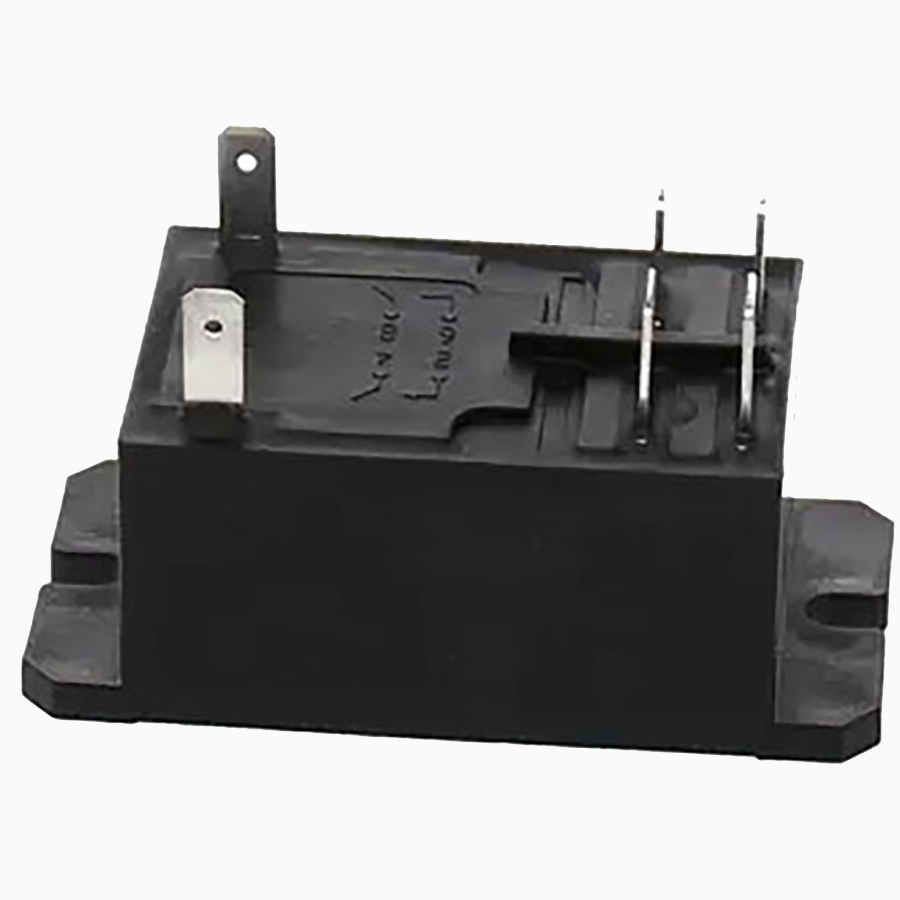

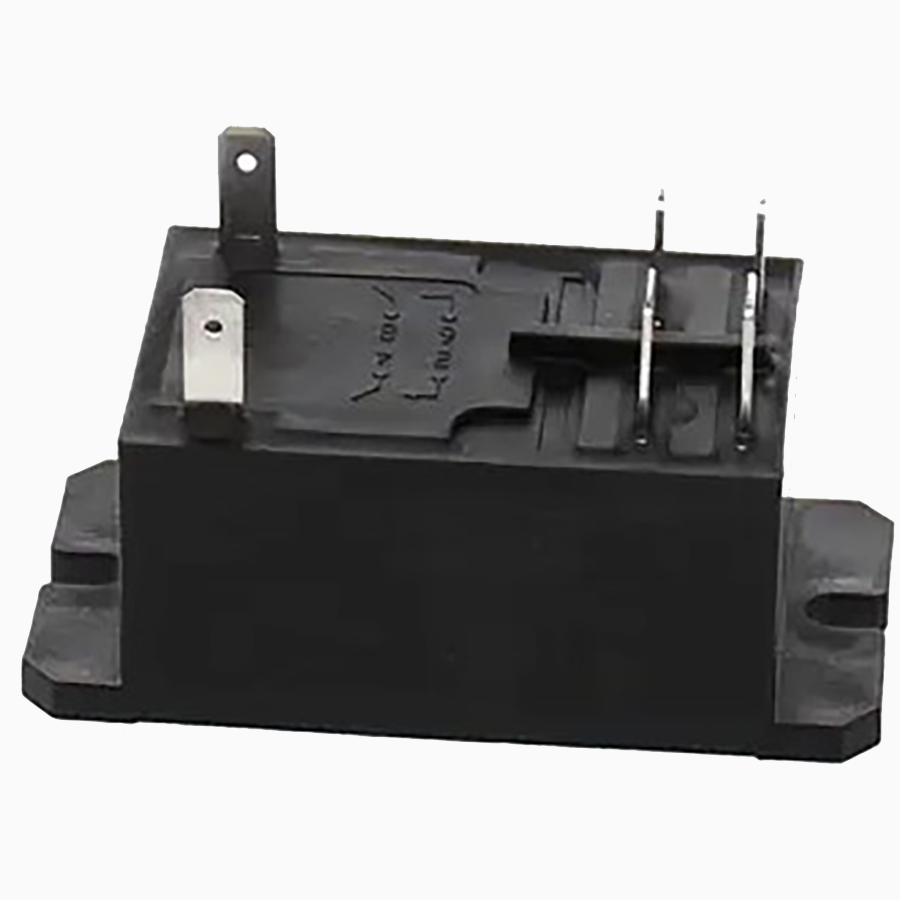

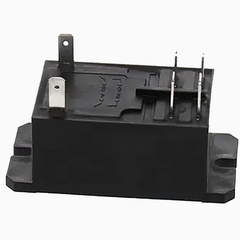

Westinghouse 1025375R Hvac System Relay 24V 30A 240V Dpst

Product Description

The WESTINGHOUSE 1025375R is a double-pole single-throw (DPST) relay designed for use in HVAC systems. It operates on a 24 VDC coil voltage and is rated for 30 amps at 240 volts, making it suitable for switching high-current loads in heating and cooling equipment. The relay controls electrical circuits within the HVAC system, opening or closing contacts in response to low-voltage control signals. Installation is typically performed by licensed HVAC technicians as part of system commissioning, troubleshooting, or component replacement.

This relay is used in HVAC system applications where a 24 VDC control signal must switch a 240-volt, 30-amp load. Typical scenarios include contactor control circuits, fan relay circuits, and other switching applications in residential or light commercial HVAC equipment. Its DPST configuration switches two conductors simultaneously, making it appropriate for applications requiring simultaneous interruption of both legs of a 240-volt circuit.

Key Features

• 24 VDC coil voltage for compatibility with standard HVAC low-voltage control circuits
• 30-amp contact rating supports high-current load switching
• 240-volt load voltage rating suitable for residential and light commercial HVAC equipment
• DPST contact configuration switches both conductors of a 240-volt circuit simultaneously
• Designed as a direct-use relay for HVAC system applications

Compatibility

Designed as an OEM-style replacement relay for HVAC systems requiring a 24 VDC coil, DPST, 30-amp, 240-volt relay.

Installation Notes

Installation should be performed by a qualified, licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing this relay. Verify coil voltage and contact ratings match the system requirements before installation. Follow all applicable local electrical codes and NEC guidelines when replacing system relay components.

Technical Specifications

• Coil Voltage: 24 VDC
• Contact Current Rating: 30 amps
• Contact Voltage Rating: 240 volts
• Contact Configuration: DPST (Double-Pole Single-Throw)
• Application: HVAC System

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 1025375R
