Westinghouse 1017206 Furnace Relay Kit 24V 30A Spst

Product Description

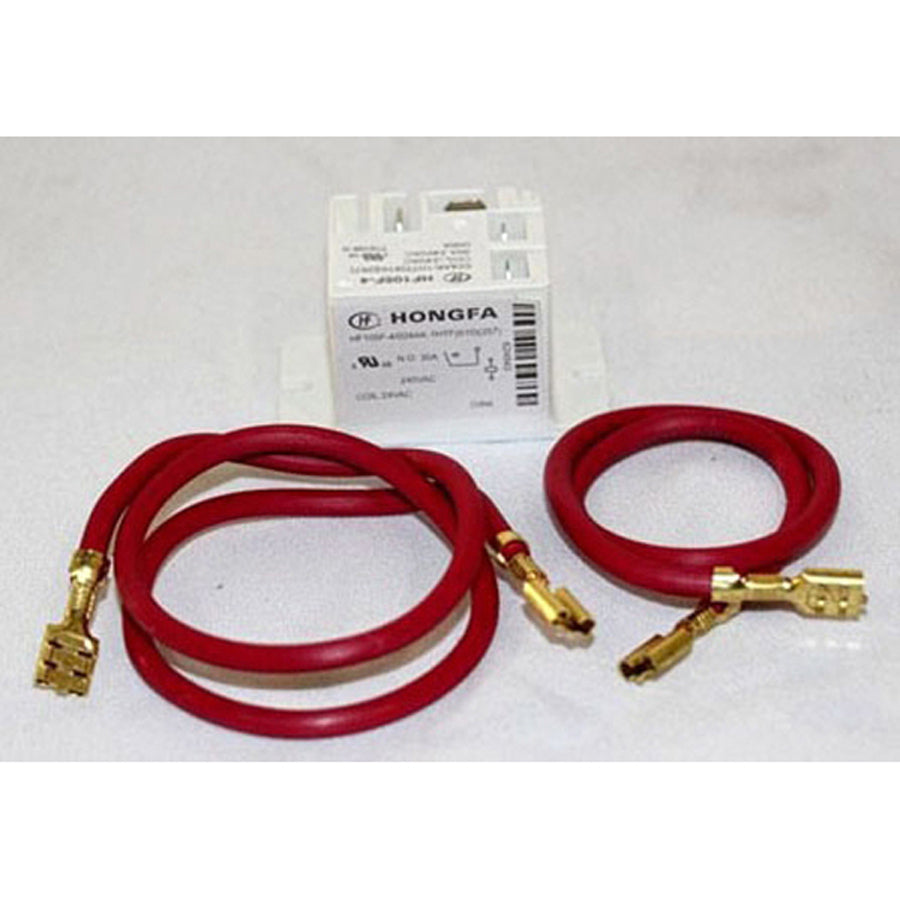

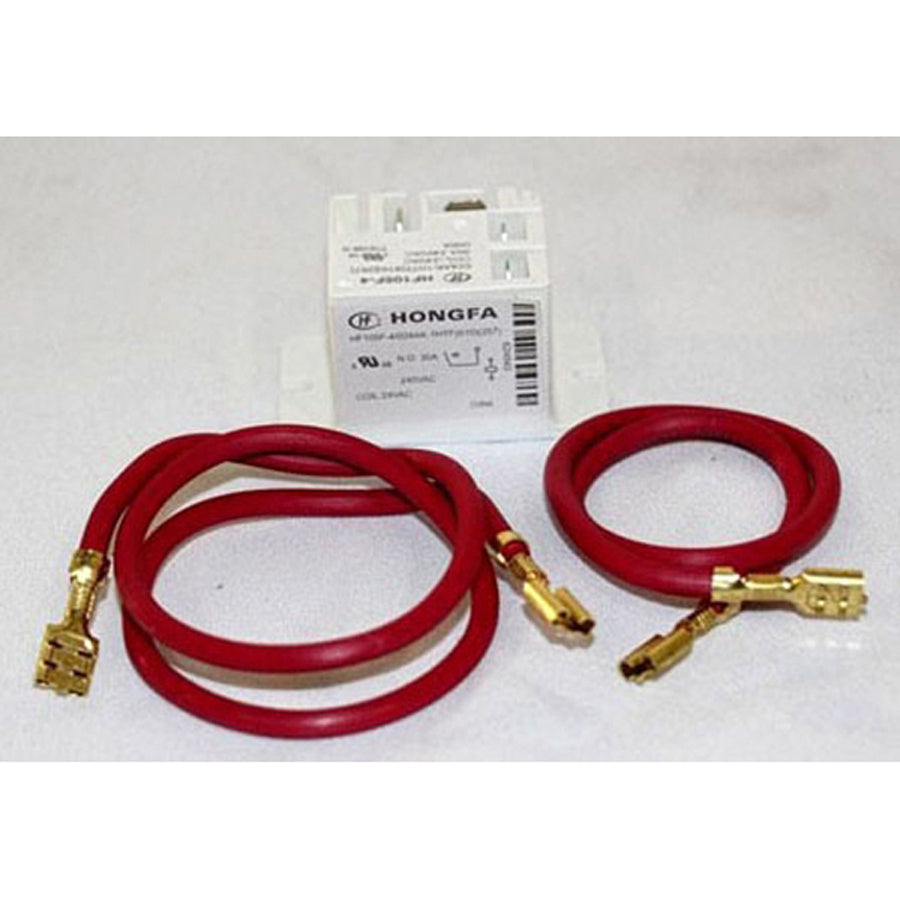

The WESTINGHOUSE 1017206 is a furnace relay kit rated for 24 volts AC and 30 amps, configured as a single-pole single-throw (SPST) switching circuit. The kit includes the relay and wiring components needed to complete the installation. Relay kits of this type control the switching of high-voltage loads within the furnace system — such as the blower motor circuit or electric heat sequencer circuit — based on a 24-volt AC control signal from the thermostat or control board. Installation is typically performed by a licensed HVAC technician as part of a repair or component replacement service.

This relay kit is designed for use in furnace applications where a 24 volt AC coil voltage and 30 amp switching capacity are required. The SPST configuration provides a single switching path, making it suitable for on/off load control within the furnace control circuit. It is applicable in residential forced-air furnace systems where the original relay has failed or requires replacement.

Key Features

• 24 volt AC coil voltage for direct compatibility with standard low-voltage furnace control circuits
• 30 amp switching capacity handles typical furnace load demands
• SPST configuration provides straightforward on/off circuit control
• Kit includes wiring components for a complete installation
• Designed as a furnace-specific relay replacement kit

Compatibility

Designed as an OEM-style replacement relay kit for residential gas furnace systems requiring a 24 volt AC, 30 amp, SPST relay configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before servicing, disconnect all electrical power to the furnace at the breaker and verify the circuit is de-energized before handling any relay or wiring components. Ensure the replacement relay ratings match the original specifications before making connections. Work should conform to applicable local electrical codes and the furnace manufacturer's service documentation.

Technical Specifications

• Type: Relay Kit
• Coil Voltage: 24 volts AC
• Amperage: 30 amps
• Configuration: SPST (Single-Pole Single-Throw)
• Application: Furnace
• Includes: Relay and wire

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 1017206
