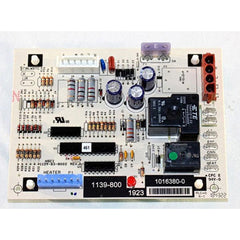

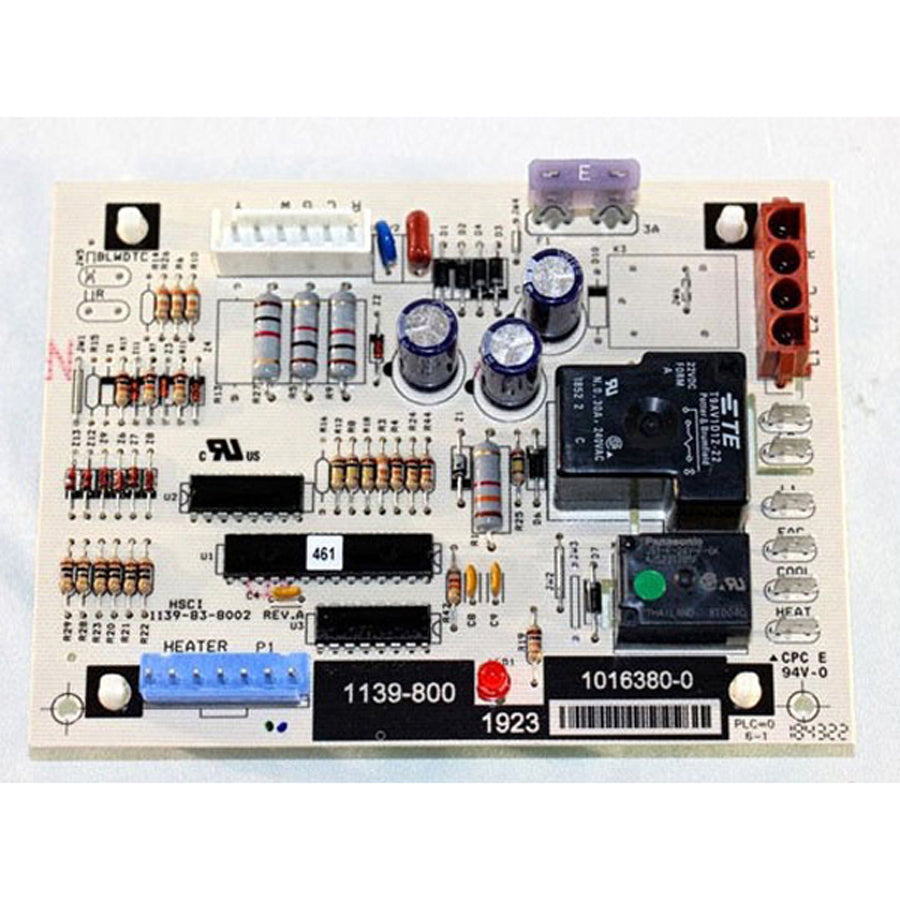

Westinghouse 1016380R Control Board 1-stage Air Handler

Product Description

The WESTINGHOUSE 1016380R is a 1-stage printed control board designed for residential air handler systems. This board serves as the central control interface for the air handler, managing blower motor staging and coordinating communication between the thermostat and air handler components. It is built to UL standards for both Canada and the United States, making it suitable for compliant installations across North America. Licensed HVAC technicians performing air handler service or control board replacements are the primary installers of this component.

This control board is used in air handler applications where single-stage operation is required. It is a direct-fit replacement for the MB7BM series air handlers, including models MB7BM-0800K-A, MB7BM-1200K-A, and MB7BM-1200K-B. These units are typically found in residential split-system installations paired with a matched outdoor condensing unit or heat pump.

Key Features

• Single-stage control logic for straightforward residential air handler operation
• Printed circuit board construction for reliable electrical performance
• UL listed to both Canadian and US standards
• OEM-specified replacement for MB7BM series air handlers
• Direct-fit design reduces installation time and wiring complexity

Compatibility

Designed as a direct OEM replacement for WESTINGHOUSE MB7BM series air handlers, specifically models MB7BM-0800K-A, MB7BM-1200K-A, and MB7BM-1200K-B.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the air handler at the disconnect switch and breaker before removing or installing the control board. Handle the printed circuit board carefully to avoid electrostatic discharge damage to onboard components. Verify all low-voltage and line-voltage wiring connections match the original board configuration before restoring power.

Technical Specifications

• Item Type: Printed Control Board
• Staging: 1-Stage
• Used On Item: Air Handler
• Compatible Model Series: MB7BM
• Applicable Standard: UL (Canada and US)

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 1016380R
