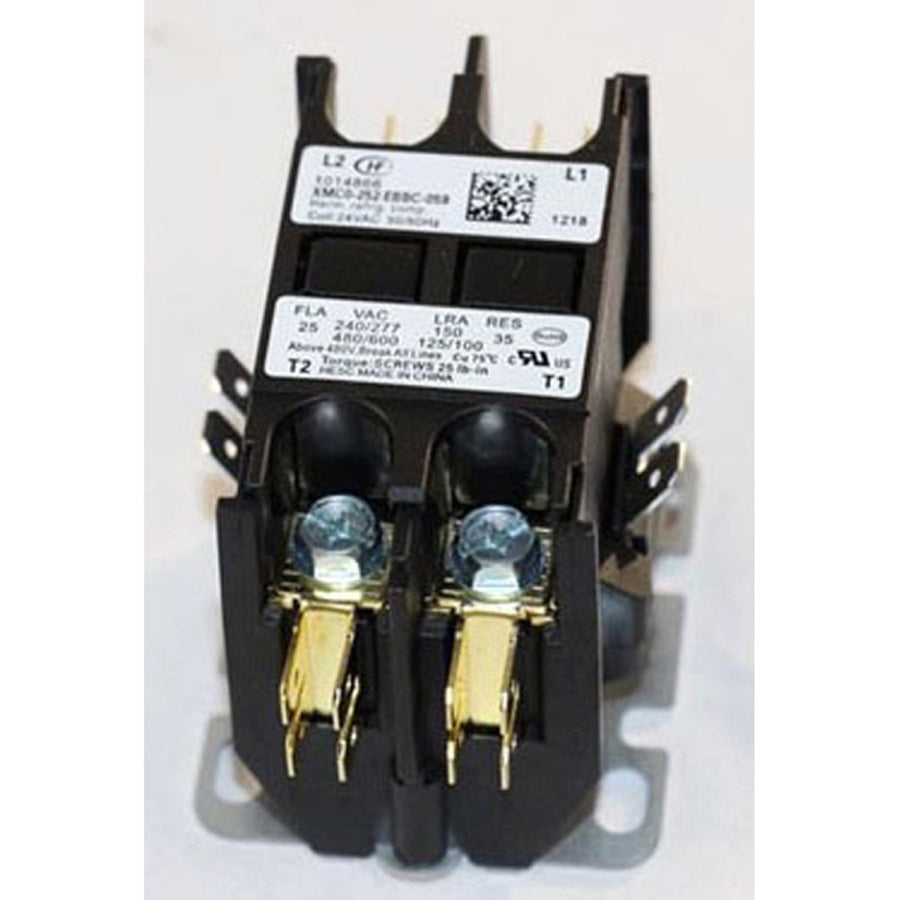

Westinghouse 1014866R Contactor 24V 25A 2-pole Heat Pump

Product Description

The WESTINGHOUSE 1014866R is a 2-pole contactor rated at 24 volts (coil voltage) and 25 amps, designed for use in residential split system heat pump applications. A contactor is an electromechanical switching device that controls power to the compressor and condenser fan motor in response to a low-voltage signal from the thermostat or control board. This unit is installed by licensed HVAC technicians during routine maintenance, compressor replacement, or contactor failure diagnosis. Its 2-pole configuration and 24-volt coil rating are standard specs for residential heat pump and air conditioning systems.

This contactor is intended for residential split system heat pump installations where a 24-volt control circuit energizes the coil to close the load-side contacts and deliver line voltage to the compressor and condenser fan. It is suited for service calls involving failed or pitted contacts, slow-pull-in issues, or contactor replacement during compressor changeouts. The 25-amp rating supports typical residential compressor loads found in split system heat pumps.

Key Features

• 24-volt AC coil voltage — compatible with standard residential low-voltage control circuits
• 25-amp load rating — suitable for residential split system compressor and fan motor loads
• 2-pole design — switches both line-voltage legs simultaneously for safe load control
• OEM-style replacement for residential split system heat pump applications

Compatibility

Designed as an OEM-style replacement contactor for residential split system heat pump equipment.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit at the disconnect box before removing or installing the contactor. Verify coil voltage and pole configuration match the existing unit before energizing the system. Follow NEC guidelines for line-voltage wiring connections at the load and line terminals.

Technical Specifications

• Coil Voltage: 24 volts AC
• Amperage Rating: 25 amps
• Number of Poles: 2
• Application: Residential Split System Heat Pump

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 1014866R
