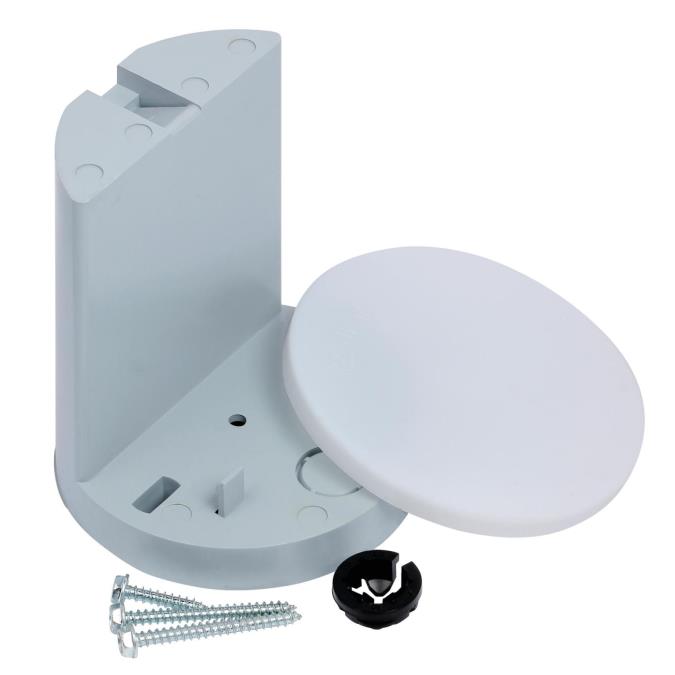

Westinghouse 0200011 Fan Master Support Box, 16.5-Cubic-Inch Wiring Capacity

Product Description

The Westinghouse Fan Master Support Box, MPN 0200011, allows for secure attachment of ceiling fans or lighting fixtures to structural support within a building. This support box effectively shifts the load to the joist rather than the box itself. It is suitable for new construction and can accommodate installations with existing duct work or wiring.

• Wiring capacity of 16.5 cubic inches on one side
• Supports ceiling fans up to 70 pounds and lighting fixtures up to 150 pounds
• UL listed with a two-hour fire rating

Product Highlights

The Fan Master can be mounted to either side of a joist, eliminating the need to split wiring. It includes knockouts for conduit or Romex and protects internal components during installation with the Saf-T-Cap.

Product Information

Standard Information

• Brand: Westinghouse
• MPN: 0200011

Technical Specifications

• Application: New construction work
• Dimensions: 4.88 inches height x 4.25 inches width x 4.25 inches depth
• Wiring Capacity: 16.5 cubic inches
• Includes: One integral Romex clamp, one plastic Romex connector, electrical box, Saf-T-Cap, mounting hardware, wire bushing, Romex connector, installation instructions
• Standards/Approvals: UL Listed, cULus Listed, NEC Compliant
• Suitable For Use With: Fan support of 150 pounds or less
