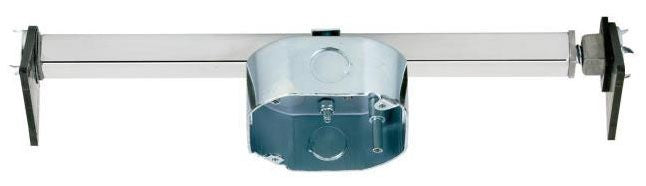

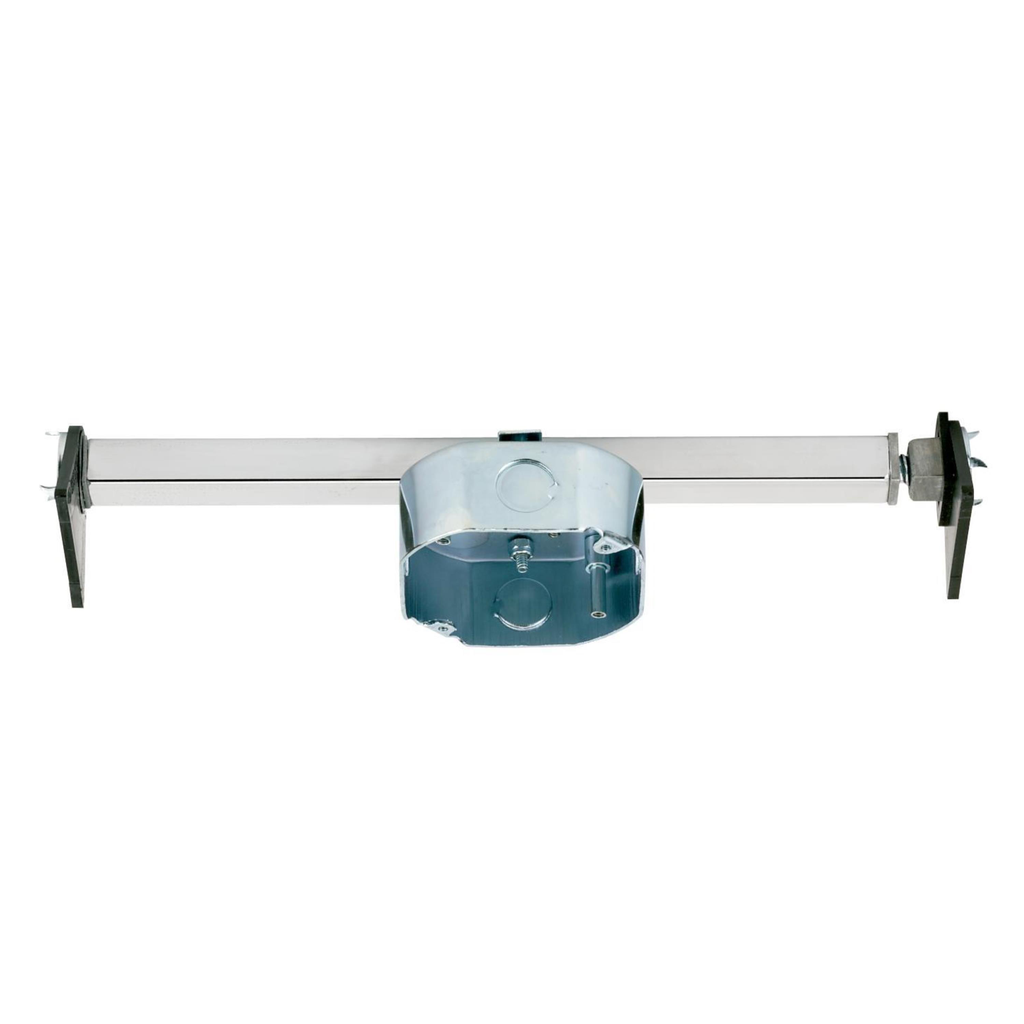

Westinghouse 0110000 Saf-T-Brace Dual Mount Light Fixture / Ceiling Fan Box Support, New/Retrofit, 15.5in³

Product Description

The Westinghouse Saf-T-Brace Dual Mount Light Fixture and Ceiling Fan Box Support with MPN 0110000 allows for the safe installation of ceiling fans or lighting fixtures without attic access. This product features a heavy-duty, dual-mount electrical box with a depth of one and a half inches and a wiring capacity of fifteen and a half cubic inches.

• Supports fixtures up to 150 lbs. on sixteen-inch centers and 50 lbs. on twenty-four-inch centers.
• Suitable for fans weighing up to 70 lbs.
• Includes mounting hardware and a Romex connector.

Product Highlights

Ideal for new construction and remodeling. The three teeth twist and lock into ceiling joists for stability. It can be installed through a four-inch hole in finished ceilings.

Product Information

Standard Information

• Product ID: 12466
• Brand: Westinghouse Lighting Corp.

Technical Specifications

• MPN: 0110000
• Type: Ceiling Fan Support Brace
• Dimensions: 14.63 inches height, 3 inches width, 3.88 inches length
• Weight: 2.280 lb
• Material: All-metal construction
• Joist Compatibility: 16 to 24 inches
• UL Listed: Yes
• Knockouts: 6 for Romex or conduit
