Westgate Mfg Uhx-150w-mp-50k Ufo Highbay 50W/80W/100W/150W

Product Description

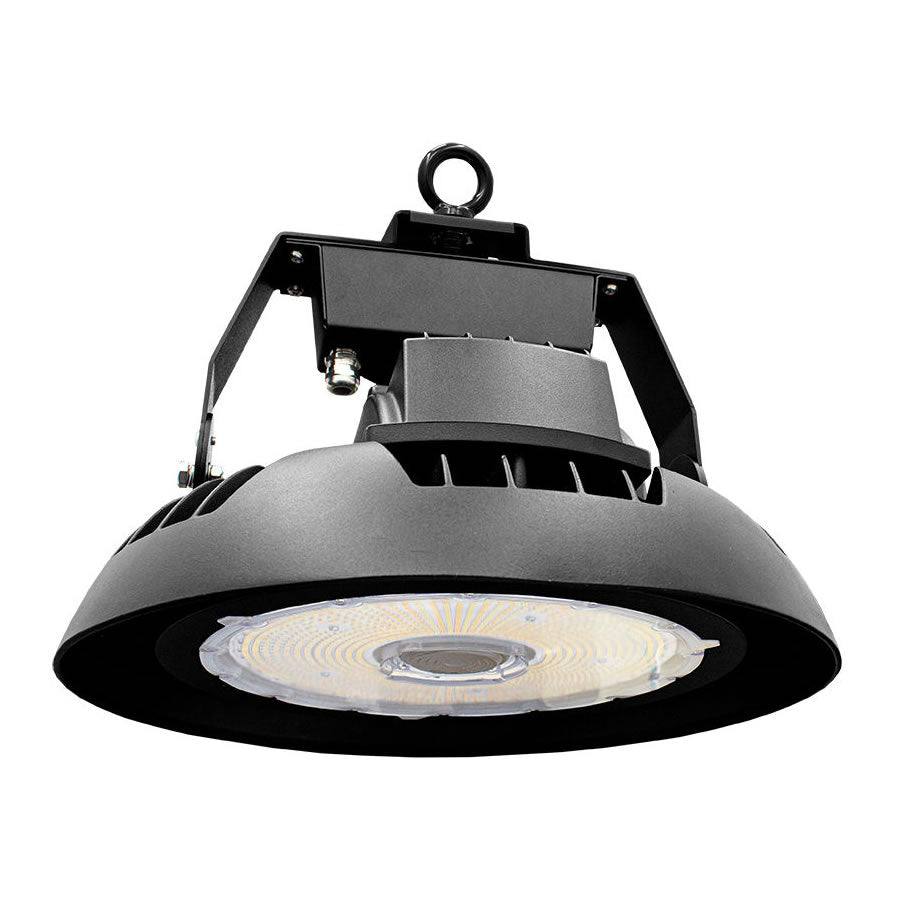

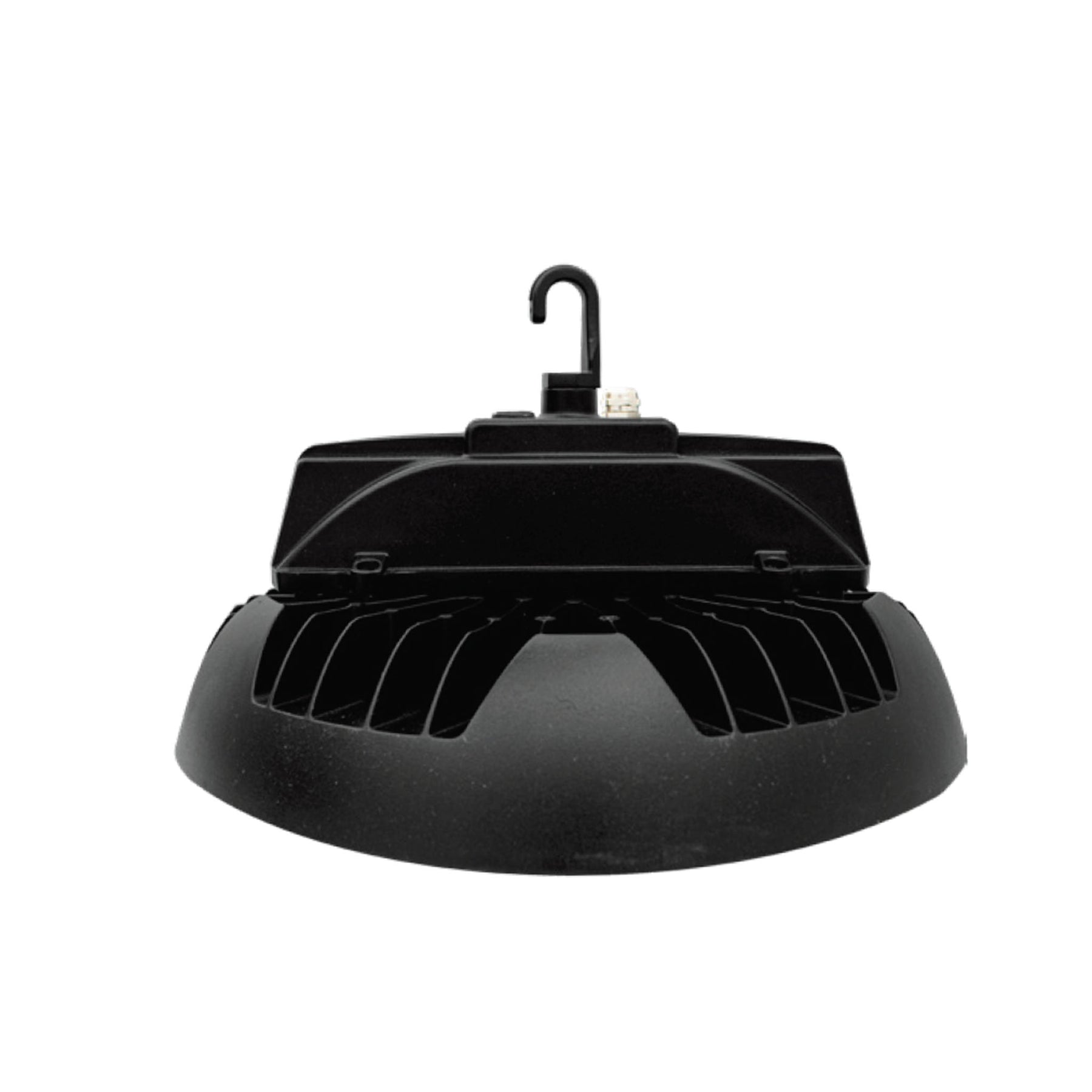

The WESTGATE MFG UHX-150W-MP-50K is an LED multi-power and multi-CCT UFO highbay. It supports 50W, 80W, 100W, and 150W power levels with a 5000K color temperature. Encased in a heat-dissipating aluminum housing with an IP65 water-resistant rating, it is ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses and storage buildings.

• Supports multiple power levels: 50W, 80W, 100W, and 150W
• Features a heat-dissipating aluminum housing
• IP65 water-resistant rating

Product Highlights

This UFO highbay is perfect for illuminating general outdoor areas and storage facilities.

Product Information

Standard Information

• Brand: WESTGATE MFG
• Manufacturer Part Number: UHX-150W-MP-50K

Technical Specifications

• Input Wattage: 50W/80W/100W/150W
• Input Voltage: 120-277V AC 50/60Hz
• Power Factor: >0.9
• THD: <20%
• Efficacy: 160/150/145/140 LPW
• Lightning Surge Protection: 6KV
• Heat Sink: ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
• Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
• Power Cable: 3 SJTW 18,3 AWG Power Cable
• Dimming Cable: 6 SJTW Dimming Cable

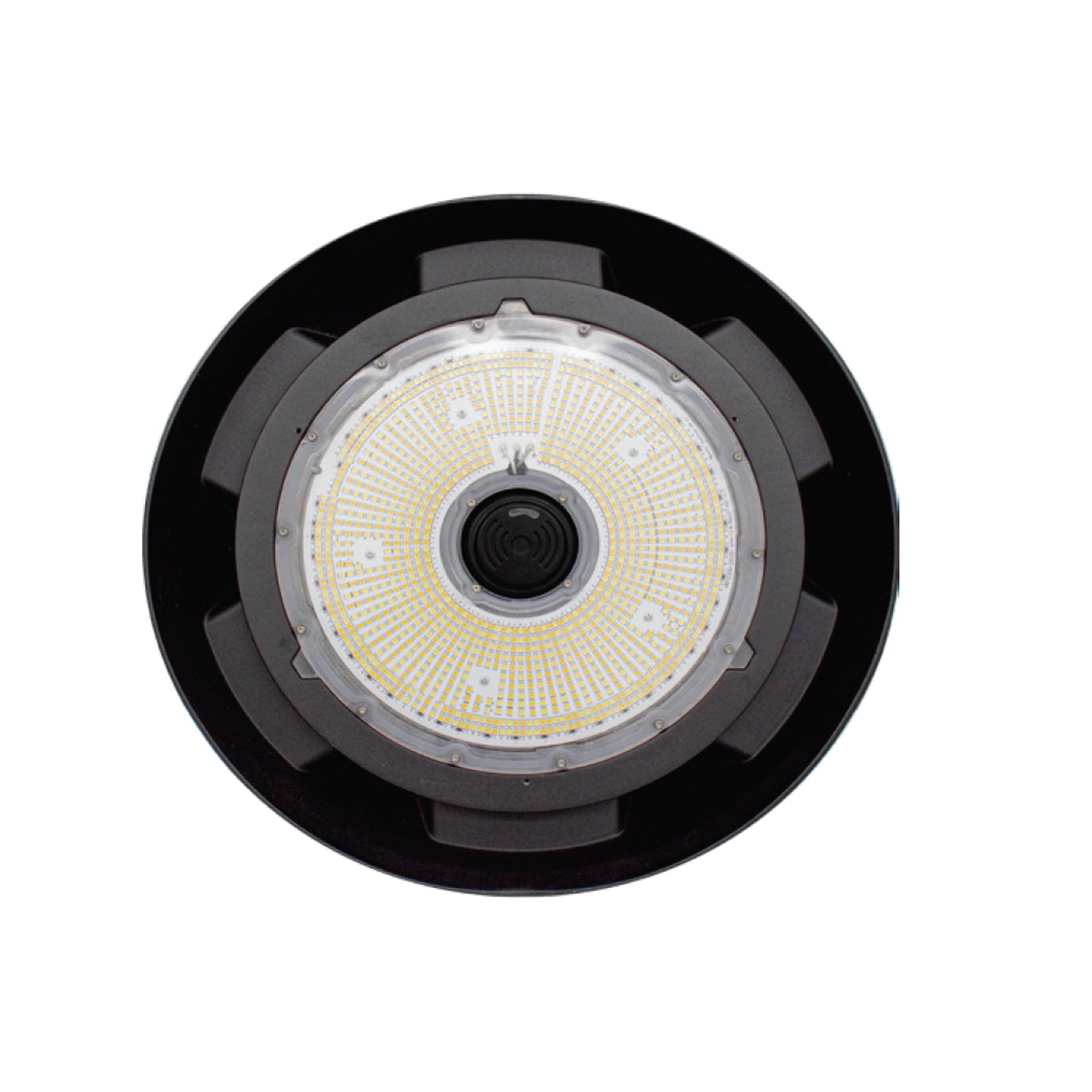

• LED: LUMILEDS 2835
• LED PCB Board: High Conductive, Waterproof, Aging Resistance, salt mist Resistance, Ensure the Safetyand Long Lifespan
• Operating temperature: -40 F to 122 F
• IP rating: IP65, Wet Locations
• Dimming: 0~10V

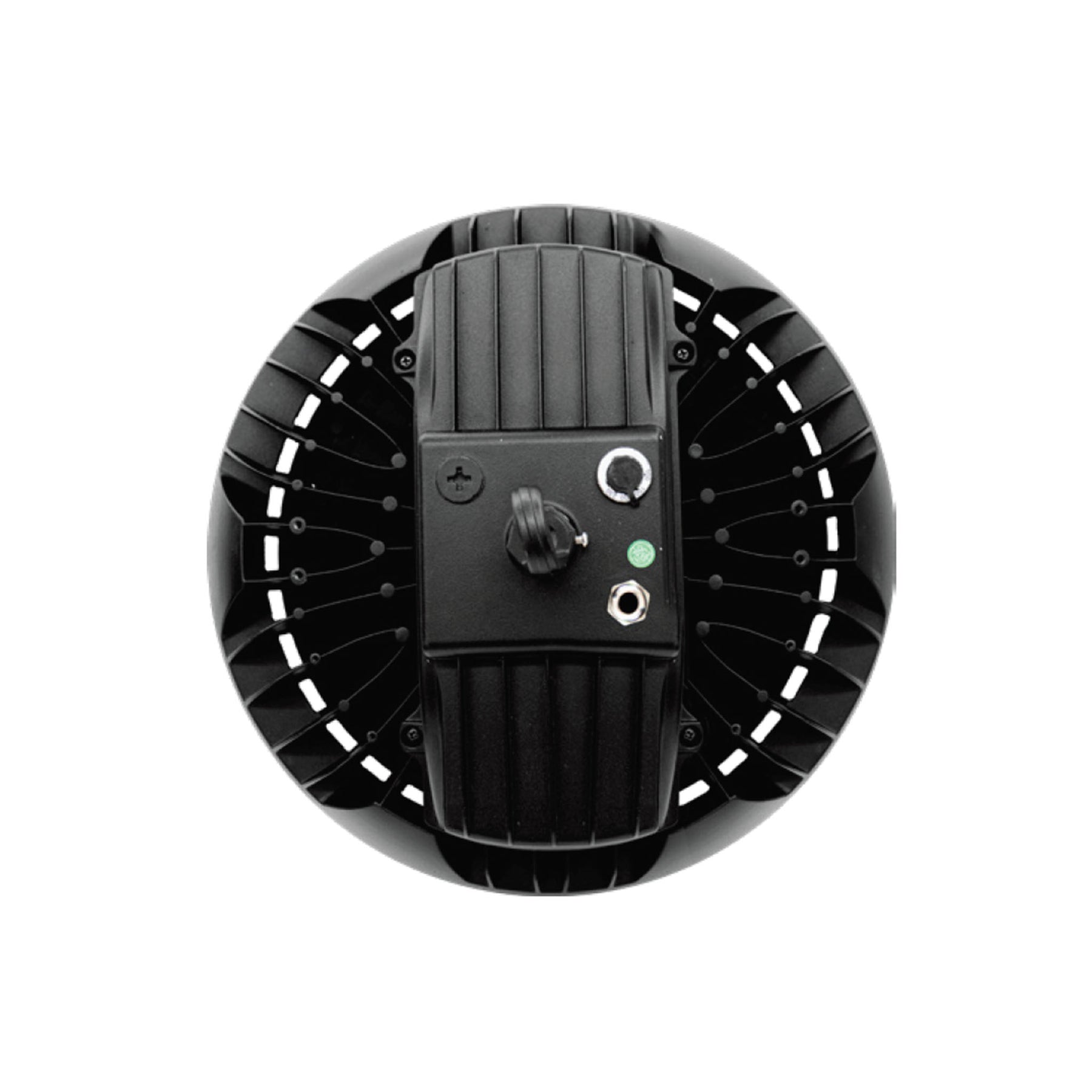

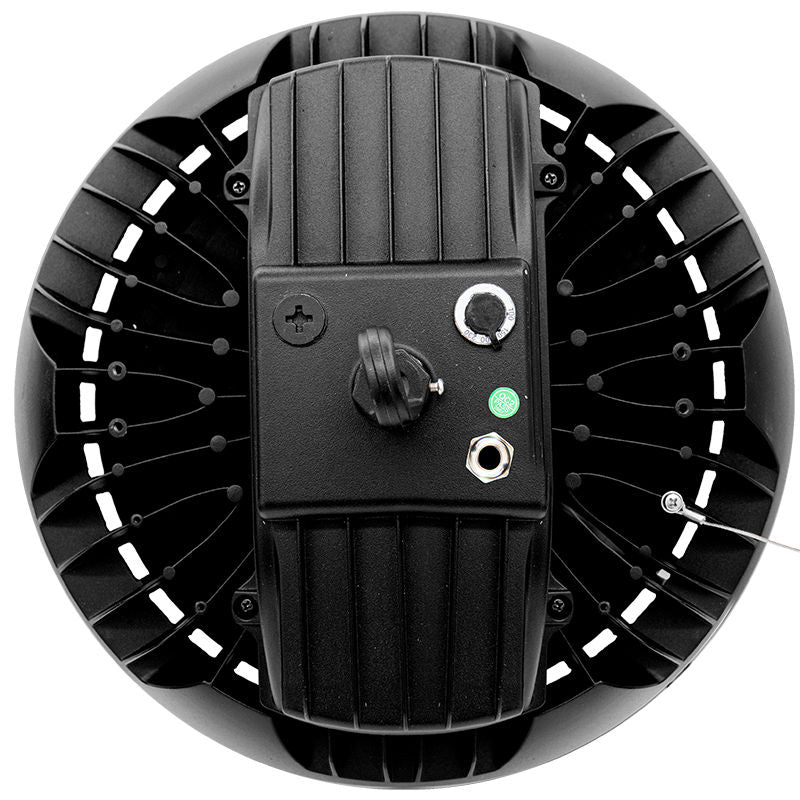

• Multi Power: Multi Power (Selectable Switch Located On The Driver Housing)
• Total Lumens: 8000/12000/14500/21000LM
• Color Temperatures: 5000K
• Color Rendering index: > 80
• Beam Angle: 110
• Lifespan: 50,000 Hrs
