Western Enterprises RS-7-5 RS Medium Duty Single Stage Regulators Inert Gas 8500 SCFH CGA580 3000 psi

Product Description

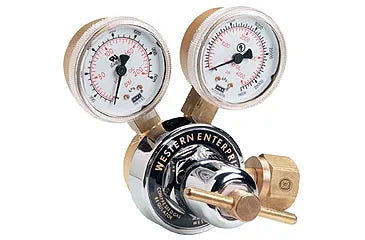

The Western Enterprises RS-7-5 is a medium-duty single-stage regulator designed for inert gas applications. It has a maximum flow capacity of 8,500 standard cubic feet per hour and an inlet connection of CGA 580.

• Dual inlet filter system for extended regulator life
• Nickel chrome plated zinc bonnet for durability
• Hydrogen and methane models feature pipe away relief valves

Product Highlights

This regulator is built for high-pressure applications up to 3,000 psi. The KEL-F seat ensures reliable performance and safety during use.

Product Information

Standard Information

• Body Material: Machined Brass
• Diaphragm Material: Neoprene

Technical Specifications

• Flow Capacity (Max): 8,500 SCFH
• Flow Range: 8,500 SCFH
• Gas Type: Inert Gas
• Gauge Size: 2 inches
• Inlet Pressure (Max): 3,000 psi
• Outlet Pressure (Max): 450 psi
• Inlet Connection: CGA 580
• Outlet Connection: 1/4 inch NPT(F)
