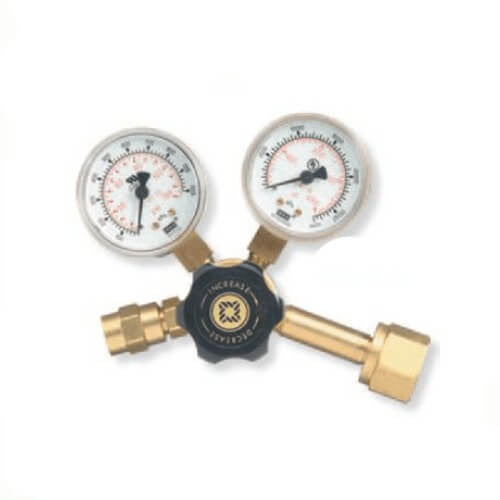

Western Enterprises REB-7-3 REB Series Nitrogen CGA-580 Light Duty Single Stage Regulator

Product Description

The Western Enterprises REB-7-3 is a light duty single stage regulator designed for nitrogen gas service with CGA-580 connection. It is suitable for various applications such as plumbing, light duty cutting, and welding. The regulator features a robust machined brass body that prevents corrosion and provides durability.

• Machined brass body for corrosion resistance
• Neoprene diaphragm ensures consistent pressure delivery
• Dual inlet filtering system promotes longevity

Product Highlights

This regulator is designed to maintain stable pressure delivery for nitrogen applications. It is portable and compact, making it easy to handle in various environments.

Product Information

Standard Information

• Brand: Western Enterprises
• MPN: REB-7-3

Technical Specifications

• Maximum Flow Rate: 1000 scfh
• Gas Service: Nitrogen CGA-580
• Delivery Pressure Range: 0 to 100 psig
• Material: Brass
• Outlet Connection: 9/16 in. - 18 Right Hand Male (RHM)
• Inlet Pressure: 0 to 3000 psig
• Seat Assembly: Polychlorotrifluoroethylene (PCTFE)
• Diaphragm Material: Neoprene
• Field: Industrial
• Gas Type: Nitrogen
• Gauge Size: 2 in
• Inlet Connection: CGA 580
• Inlet Type: CGA-580
• Series: REB
• Outlet Pressure: 100 psig
• Product Type: Single Stage Regulators
• Inlet Pressure [Max]: 3000 PSIG
