Western Enterprises PF-4SS-36 Stainless Steel 1 Outlet Pigtail 36 in

Product Description

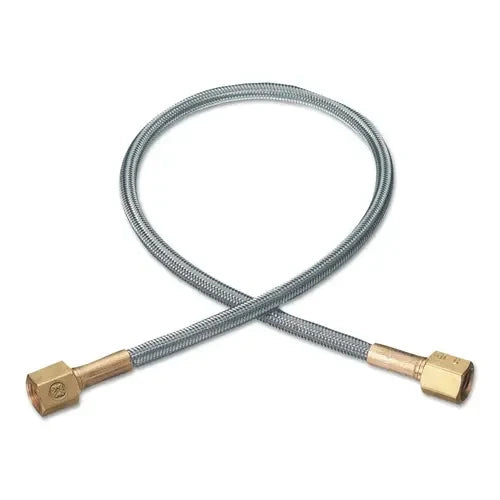

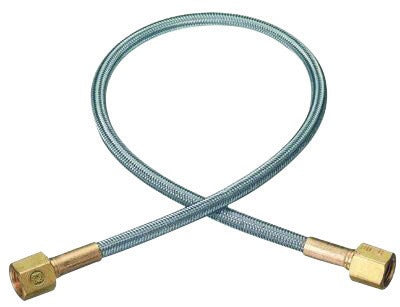

Western Enterprises PF-4SS-36 is a 36 in stainless steel flexible pigtail with a PTFE core and 1/4 in female NPT connections, designed for oxygen gas service and rated to 6000 psig. The assembly has two outer Type 304 stainless steel braid jackets, a nominal 1/4 in ID and a room-temperature burst pressure of 12000 psig. Temperature range is -65 F to +450 F and minimum bend radius is 3 in.

• Construction: PTFE (Teflon) core with two outer Type 304 stainless steel braid jackets; nominal 1/4 in ID
• Connections and pressure: 1/4 in NPT female x 1/4 in NPT female; maximum inlet pressure 6000 psig; burst pressure 12000 psig (room temperature)
• Environmental and testing: Temperature range -65 F to +450 F (-54 C to +232 C); minimum bend radius 3 in; 100% pressure tested and labeled for gas service

Product Highlights

36 in Type 304 stainless steel flexible pigtail with PTFE core, 1/4 in female NPT connections, 6000 psig rating, 3 in minimum bend radius

Product Information

Standard Information

• Brand: WESTERN ENTERPRISES
• Manufacturer Part Number: PF-4SS-36
• Country of Origin: United States
