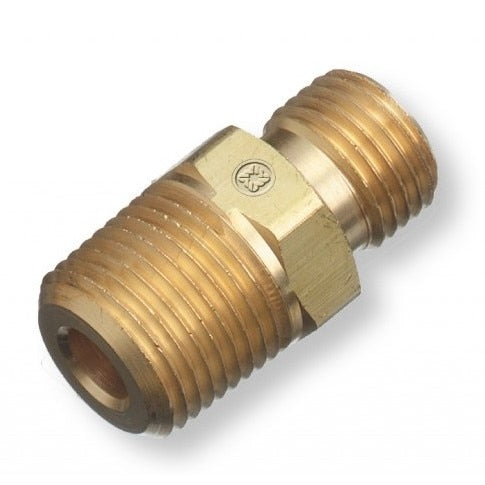

Western Enterprises D-32 Regulator Outlet Bushing CGA-026

Product Description

The WESTERN ENTERPRISES D-32 is a D-size regulator outlet bushing designed for oxygen service applications. It provides a threaded transition at the outlet port of a gas regulator, converting the regulator connection to a 3/4 inch NPT right-hand male thread rated for use with CGA-026 fittings. Constructed from brass, this bushing is rated to 200 psi, making it suitable for the pressure demands of typical compressed oxygen distribution systems. It is installed by licensed gas technicians and welding supply professionals during regulator setup or replacement on oxygen cylinder systems.

This outlet bushing is used in industrial, medical-adjacent, and welding gas applications where a D-size oxygen regulator must interface with downstream piping or equipment using a 3/4 inch NPT male connection. Common installation scenarios include cylinder manifold assemblies, torch supply lines, and regulator changeouts on oxygen service equipment. The right-hand thread designation confirms this fitting is for non-fuel-gas use, consistent with oxygen service conventions.

Key Features

• Rated to 200 psi for oxygen service pressure demands
• Brass construction for corrosion resistance and oxygen compatibility
• 3/4 inch NPT right-hand male outlet thread
• CGA-026 connection type for D-size regulator outlets
• Sold individually per unit

Compatibility

Designed for use with D-size oxygen regulators utilizing a CGA-026 outlet connection. Provides a 3/4 inch NPT right-hand male thread interface for downstream oxygen service piping.

Installation Notes

Installation should be performed by a qualified gas technician familiar with compressed gas system assembly. Always close the cylinder valve and bleed downstream pressure before removing or installing any regulator fittings. Use only oxygen-compatible thread sealant or PTFE tape rated for oxygen service — never use petroleum-based compounds on oxygen fittings. Refer to applicable codes including NFPA 55 and CGA guidelines for compressed oxygen system assembly.

Technical Specifications

• Pressure Rating: 200 psi
• Material: Brass
• Size: D-size
• Outlet Thread: 3/4 inch NPT Right-Hand Male
• Connection Standard: CGA-026
• Gas Service: Oxygen
• Weight: 0.5 pounds
• UPC: 698944010980

Standard Information

• Brand: WESTERN ENTERPRISES
• Manufacturer Part Number: D-32
