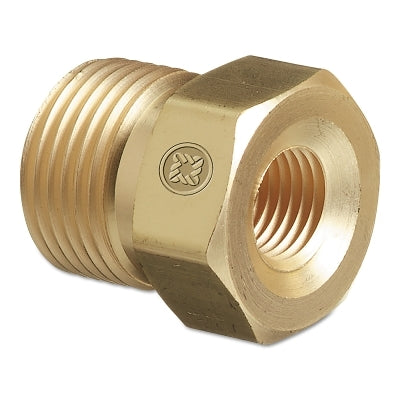

Western Enterprises 415-1 Female Manifold Outlet Bushing CGA 540 V.O. 1/4 FPT

Product Description

The Western Enterprises 415-1 Female Manifold Outlet Bushing is a versatile brass adapter designed for use in manifold pipelines. It is crafted with precision and durability in mind, making it ideal for various industrial applications.

• CGA 540 V.O. 1/4 FPT
• Made for manifold pipelines
• Manufactured in the United States

Product Highlights

This brass adapter can withstand pressures up to 3000 psig, ensuring reliable performance with oxygen gases. Suitable for both right-hand (RH) and left-hand (LH) thread directions, it is designed to meet CGA-540 standards.

Product Information

Standard Information

• Brand: Western Enterprises
• MPN: 415-1
• Country of Origin: United States

Technical Specifications

• Body Material: Brass
• CGA No.: CGA-540
• Connection Type: Male/Female
• Connections: 0.903 in Male; 1/4 in (NPT) Female
• Female Thread: 1/4 in (NPT)
• Gas Type: Oxygen
• Male Thread: 0.903 in
• Pressure Max: 3000 psig
• Shape: Straight
• Thread TPI or Pitch: 0.903 in - 14 NGO, RH(M)
• Thread Direction: RH
• Type: Adapter
• Used With: Manifold
• Weight: 0.22 lbs
