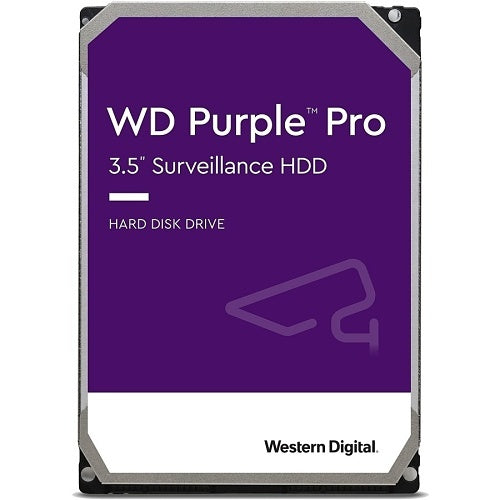

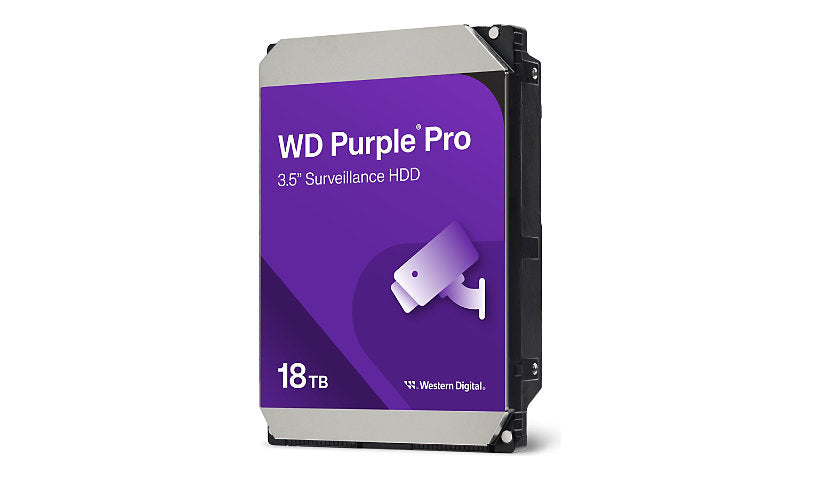

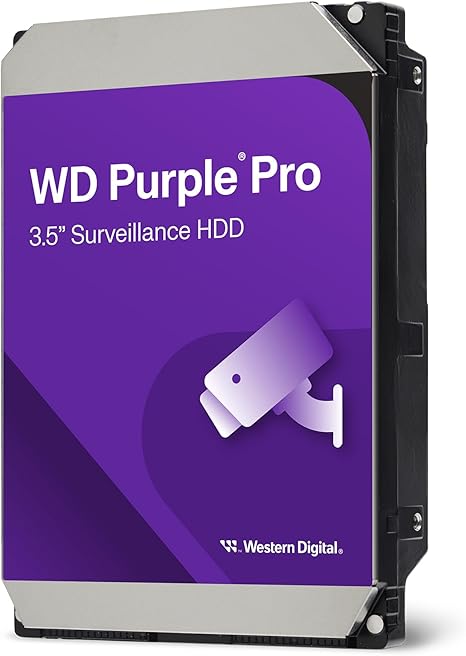

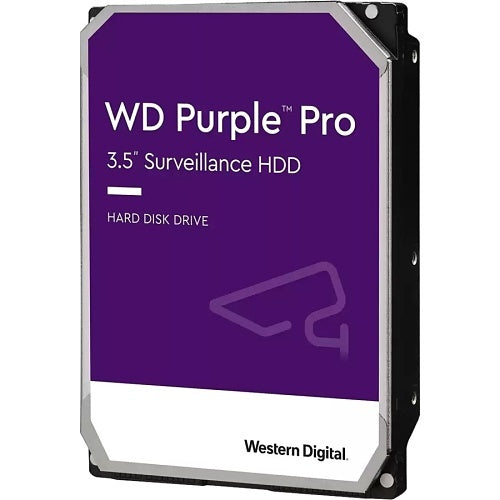

Western Digital WD181PURP Purple Pro 3.5 inches Internal, 18TB

Product Description

The Western Digital WD181PURP Purple Pro drive is designed for advanced smart video solutions. Engineered for high-end AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud solutions needing high-capacity storage with high performance and workload capability. It features AllFrame AI technology, which helps reduce frame loss and improve video playback, supporting up to 32 AI streams for deep learning analytics.

• Engineered with advanced capabilities needed for high-end smart video solutions
• High performance, reliability and workload capability for advanced AI-enabled recorders, video analytics appliances, deep-learning servers and cloud-based storage, including RAID and JBOD configurations.
• Supports up to 550 TB/yr workload rate.

Product Highlights

Ideal for advanced always-on AI-enabled smart video recorders, appliances, and servers. Extract value and insights from streamed and stored video.

Product Information

Standard Information

• Brand: WESTERN DIGITAL
• Manufacturer Part Number: WD181PURP
• Country of Origin: China

Technical Specifications

• Brand Name: Western Digital
• Drive Type: Internal
• Width: 4"
• Buffer: 512 MB
• Height: 1 inch
• Length: 5.8"
• Width (mm): 101.6
• Form Factor: 3.5"
• Height (mm): 26.1
• Length (mm): 147.000
• Manufacturer: Western Digital Corporation
• Product Line: Purple Pro
• Product Name: Purple Pro WD181PURP Hard Drive
• Product Type: Hard Drive
• Wireless LAN: No
• Buffer (Byte): 536870912
• Product Model: WD181PURP
• Drive Interface: SATA
• Endurance (TBW): 550 TB
• Device Supported: Server, Storage System, Video Surveillance System
• Storage Capacity: 18TB
• Spindle Speed (rpm): 7200
• Recording Technology: Conventional Magnetic Recording (CMR)
• Weight (Approximate): 1.52 lb
• Endurance (TBW) (Byte): 604731395276800
• Storage Capacity (Byte): 19791209299968
• Drive Interface Standard: SATA/600
• Environmentally Friendly: Yes
• Manufacturer Part Number: WD181PURP
• Weight (Approximate) (g): 690
• Connector: SATA
• Interface: SATA
• Transfer Rate: up to 272MB/s
• Disk Speed (RPM): 7200 RPM
• Cache Size: 512MB
• Dimensions (L x W x H): 5.79" x 4" x 1.03"
• Operating Temperature: 0°C to 65°C
• Non-Operating Temperature: -40°C to 70°C
• Product Features: Engineered for advanced AI-enabled recorders, video analytics appliances, deep-learning servers, and cloud-based storage, including RAID and JBOD
• Designed with tarnish-resistant components for harsh environments and with additional robustness for multi-bay enclosures: Supports up to 550TB/yr workload rate
• Compatibility: Up to 64 single-stream cameras
• Hard Disk Interface: Serial ATA
• Connectivity Technology: SATA
• Special Feature: Data Recovery Service
• Hard Disk Form Factor: 3.5 Inches
• Hard Disk Description: Mechanical Hard Disk
• Installation Type: Internal Hard Drive
• Series: WD Purple Pro Surveillance Hard Drive
• Item model number: WD181PURP-SPB6HY0
• Flash Memory Size: 18 TB
• Hard Drive Rotational Speed: 7200 RPM
• Model: WD181PURP
• Data Transfer Rate (Hard Drive): 600 MBps
• Form Factor (Short): 3.5"
• Form Factor (Short) (metric): 8.9 cm
• Hard Drive Capacity: 18 TB
• Hard Drive Features: 24x7 continuous operation, Advanced Format technology, AllFrame AI, Conventional magnetic recording (CMR), Support up to 64 cameras, Tarnish-resistant
• Hard Drive Type: Internal hard drive
• HD Interface: Serial ATA-600
• Load/Unload Cycles: 600,000
• Max Internal Data Transfer Rate: 272 MBps
• Non-Recoverable Errors: 1 per 10^15
• Storage Interface: Serial ATA-600
• 24x7 Operation: Yes
• Interface Provided: 1 x SATA 6 Gb/s
• Power Consumption: 0.9 Watt (sleep), 0.9 Watt (standby), 5.9 Watt (idle), 6.3 Watt (read/write)
• Compatible Bay: 3.5"
• Hard Drive Form Factor (metric): 8.9 cm
• Max Operating Temperature: 149 degree Fahrenheit
• Max Storage Temperature: 158 degree Fahrenheit
• Min Operating Temperature: 32 degree Fahrenheit
• Min Storage Temperature: -40 degree Fahrenheit
• MTBF: 2,500,000 Hours
• Shock Acceleration (Non-operating): 250 gram
• Shock Acceleration (Operating): 50 gram
• Shock Duration (Non-operating): 2 ms
• Shock Duration (Operating): 2 ms
• Packaged Quantity: 1
• Depth: 5.8 inch
• Compliant Standards: RoHS 2011/65/EU
