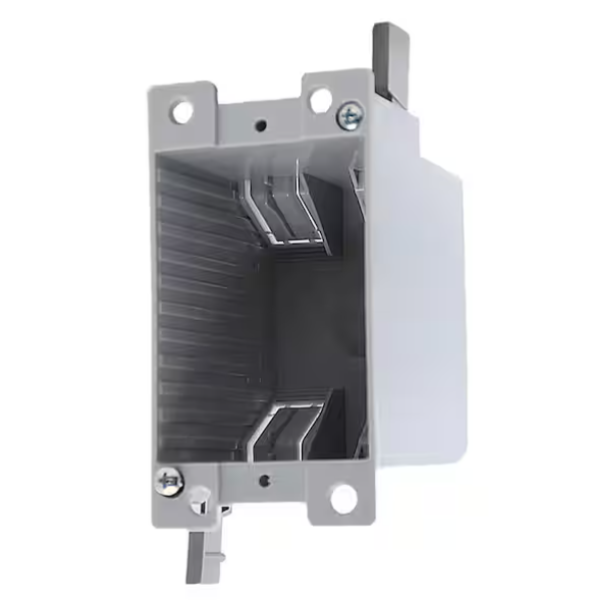

Wesco EZ14SO Single Gang Pvc Cut-in Outlet Box 14 Cu in

Product Description

The WESCO EZ14SO is a single-gang, cut-in PVC electrical box designed for retrofit and remodel installations where no stud access is available. Rated at 14 cubic inches of interior volume, it accommodates standard switches and receptacles in existing drywall or plaster walls. The box ships with swing brackets that deploy behind the wall surface to clamp the box securely in place without additional fasteners. Licensed electricians and skilled trade workers use this box in residential and light commercial remodel projects where the existing wall cavity must be utilized.

This box is suited for retrofit wiring applications in finished walls. The swing-bracket design allows installation through a cutout in drywall, eliminating the need to open the wall to a stud. It is commonly installed when adding or relocating outlets, switches, or low-voltage devices in finished residential interiors. The PVC construction resists corrosion and is appropriate for dry interior locations.

Key Features

• 14 cubic inch interior volume accommodates standard single-gang devices and wiring fill requirements per NEC
• PVC construction is lightweight, non-conductive, and corrosion resistant
• Integrated swing brackets secure the box to drywall or plaster without stud access
• Single-gang configuration accepts standard switches, receptacles, and GFCI devices
• Cut-in design speeds retrofit and remodel installations in finished walls

Compatibility

Designed as an OEM-style replacement and standard cut-in solution for single-gang residential and light commercial electrical installations requiring a non-metallic PVC box with swing-bracket retention.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a non-contact tester before cutting the wall opening or pulling wire. Mark and cut the wall opening to the template dimensions before inserting the box, then tighten the swing brackets until the box is firmly seated against the wall surface. Do not overtighten the bracket screws, as excessive force can crack the PVC housing.

Technical Specifications

• Box Configuration: Single Gang
• Interior Volume: 14 cubic inches
• Material: PVC
• Mounting Type: Cut-In with Swing Brackets
• Dimensions (L x W): 2.25 inches x 2.9 inches

Standard Information

• Brand: WESCO
• Manufacturer Part Number: EZ14SO
