WESANCO UX15810 Cush-A-Therm 1 Wall 1-5/8 ID

Product Description

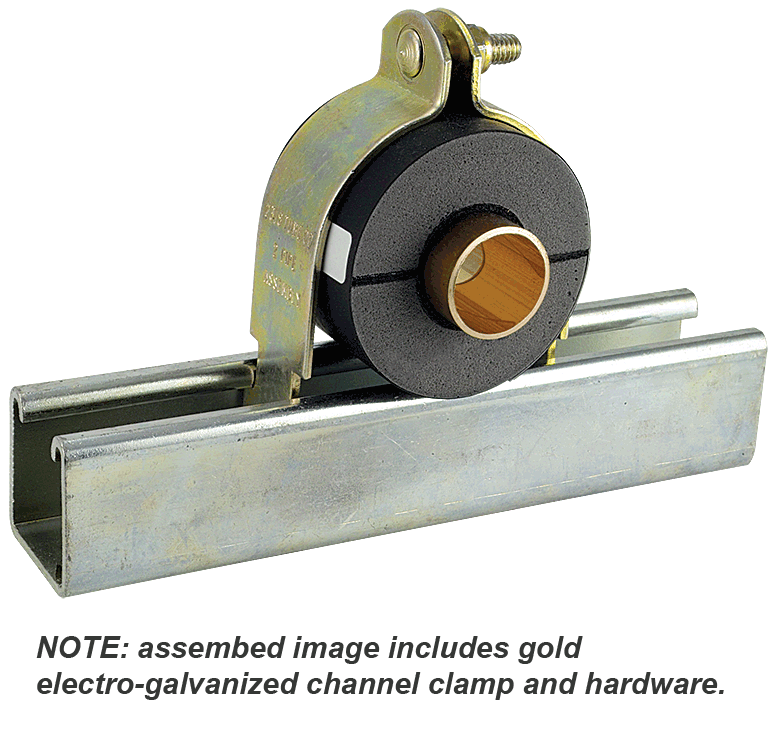

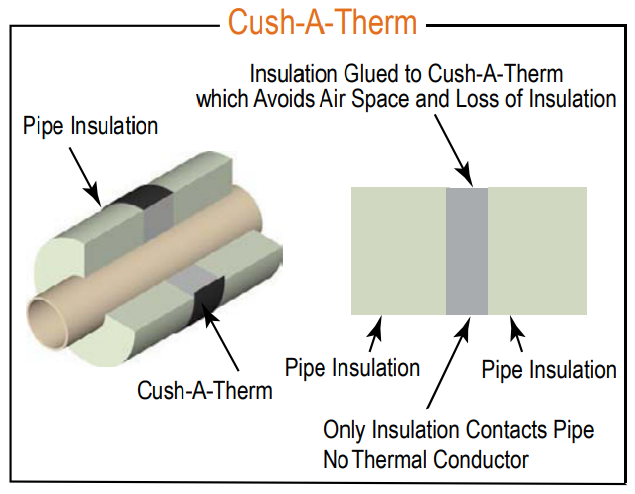

The WESANCO UX15810 Cush-A-Therm is designed for applications with chilled refrigeration or mechanical pipe lines that require continuous insulation. This clamp features a wall thickness of 1 inch and is constructed of rigid foam material. An inner insulating tape lining offers support to the tube while effectively absorbing vibrations. The outer rubber coating forms a seal after installation to help prevent condensation formation. This product is ideal for liquid cooling lines, ensuring energy efficiency and maintaining a reliable vapor barrier.

• Temperature range from -70°F to +250°F (-56.7°C to +121°C)
• Self-extinguishing flammability as per ASTM D 635 testing
• Excellent thermal barrier protection

Product Highlights

The WESANCO UX15810 provides an effective solution for insulating pipes in refrigeration and HVAC systems.

Product Information

Standard Information

• Brand: WESANCO
• MPN: UX15810

Technical Specifications

• Temperature Range: -70°F to +250°F (-56.7°C to +121°C)
• Flammability: Self-Extinguishing as tested under ASTM D 635
• Material: Polyurethane foam with rubber lining
• Inner Diameter: 1-5/8 inches
• Wall Thickness: 1 inch
