WESANCO UX1210 Cush-A-Therm 1inch Wall 1/2inch ID

Product Description

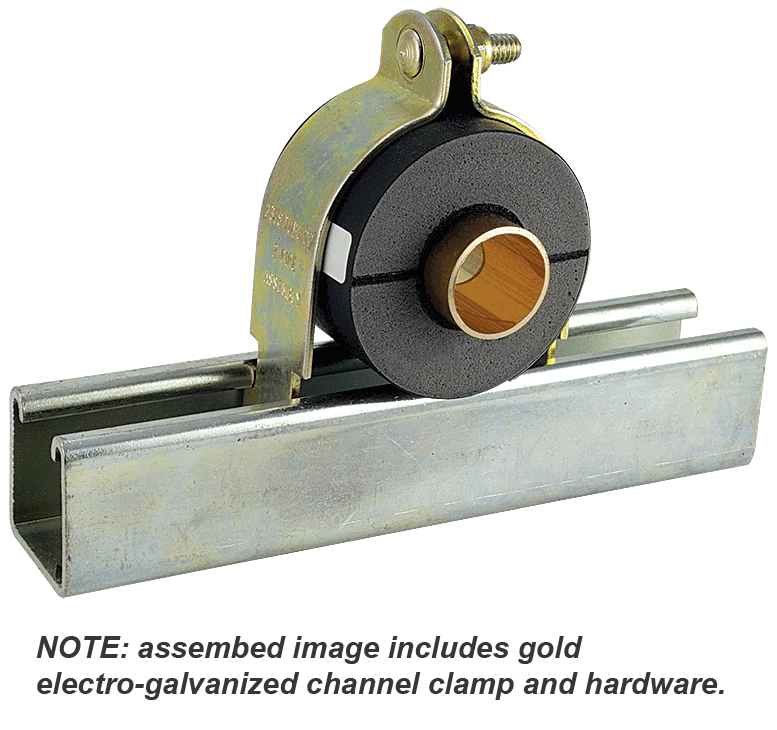

The WESANCO UX1210 Cush-A-Therm clamp features a one inch wall thickness and offers a durable, airtight seal suitable for refrigeration and mechanical pipe lines. It is designed for continuous insulation. The rigid foam construction includes an insulating tape inner lining that supports the tube while reducing vibration. After installation, the outer rubber coating works to prevent condensation, ensuring optimal performance. This product's closed-cell structure effectively maintains the vapor barrier and enhances energy savings, especially for liquid cooling lines.

• Maintains thermal barrier protection
• Prevents condensation
• Properly supports pipe and tube

Product Highlights

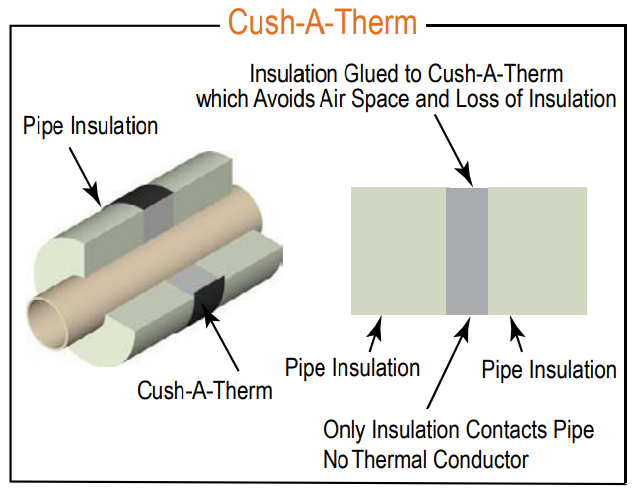

Compliant with the 2013 ASHRAE insulation recommendations, this Cush-A-Therm product effectively seals out air and provides insulation from the supporting clamp.

Product Information

Standard Information

• Brand: WESANCO
• MPN: UX1210

Technical Specifications

• Temperature range: -70°F to +250°F (-56.7°C to +121°C)
• Flammability: Self-Extinguishing as tested under ASTM D 635
