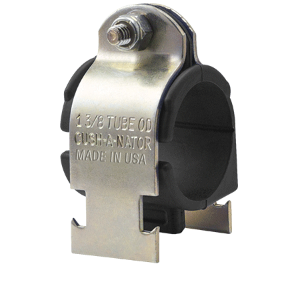

Wesanco CN18 Cush-A-Nator Standard 1-1/8 in. Tube Steel

Product Description

The Wesanco CN18 Cush-A-Nator is a vibration-dampening strut clamp made from steel with a zinc-plated finish. Designed for a one and one-eighth inch tube, this clamp features a thermoplastic elastomer cushion for effective vibration damping. Suitable for use in high vibration environments, it can support loads of up to six hundred pounds.

• Features vibration damping with TPE cushion material.
• Constructed from durable, zinc-plated steel.
• Compatible with one and one-eighth inch tube sizes.

Product Highlights

This strut clamp is ideal for various applications where vibration control is crucial.

Product Information

Standard Information

• Brand: Cush-A-Nator
• Item: Vibration-Dampening Strut Clamp

Technical Specifications

• Tube Size: 1 1/8 in
• Height: 2.08 in
• Length: 1.62 in
• Width: 1.57 in
• Overall Height: 2 5/64 in
• Overall Width: 1 9/16 in
• For Strut Channel Width: 1 5/8 in
• For Maximum Outside Diameter: 1 1/8 in
• Installed Height: 3 45/64 in
• Overall Length: 1 5/8 in
• Material: Standard TPE Cushion, Steel Clamp
• Temperature Range: -50 Degrees to 275 Degrees F
• Resistance Properties: Heat Resistant, Vibration Damping
• Cushioned: Yes
• Load Capacity: 600 lb
• Application: Retrofit
• Clamp Bore Style: Smooth
• Maximum Operating Temperature: 275 Degrees F
