WESANCO Wesanco 010T014 Cush-A-Clamp 5/8 Tube (5/8)
WESANCO Wesanco 010T014 Cush-A-Clamp 5/8 Tube (5/8)

Wesanco 010T014 Cush-A-Clamp 5/8 Tube (5/8)

Brand: WESANCO
SKU: 010T014
Availability: Out Of Stock
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Wesanco 010T014 Cush-A-Clamp is a channel-mounted clamp with a thermoplastic elastomer cushion sized for a 5/8" tube (cushion I.D.) and nominally for 1/2" copper water pipe. The steel clamp assembly fits standard 1-5/8" wide channel and is designed to absorb shock and vibration, reduce noise, and help prevent galvanic corrosion. Cushion temperature rating is -50 F to 275 F.

  • Gold electro-galvanized steel clamp with steel locknut and thermoplastic elastomer cushion
  • Cushion resists oils, chemicals and industrial cleaning compounds; temperature rated -50 F to 275 F
  • Channel-mounted design fits standard 1-5/8" wide channel; Controlled Squeeze feature prevents over-tightening on smaller sizes

Product Highlights

Channel-mounted tube clamp for 5/8" cushion I.D.; steel clamp with thermoplastic elastomer cushion; temperature range -50 F to 275 F.

Product Information

Standard Information

  • Brand: WESANCO
  • Manufacturer Part Number: 010T014
Technical Specifications
Brand
WESANCO
Manufacturer Part Number
010T014
Material/Finish
Gold electro-galvanized steel (electro-dichromate finish)
Tube Size (Cushion I.D.)
5/8" (0.62" / 16 mm)
Nominal Pipe Fit
1/2" copper water pipe (nominal)
Mounting Type
Channel-mounted (fits standard 1-5/8" wide channel)
Assembly Components
Steel clamp with locknut and thermoplastic elastomer cushion
Cushion Material
Thermoplastic elastomer
Cushion Temperature Range
-50 F to 275 F
Alternate Materials
Stainless steel type 304 (contact factory for type 316)
Design Features

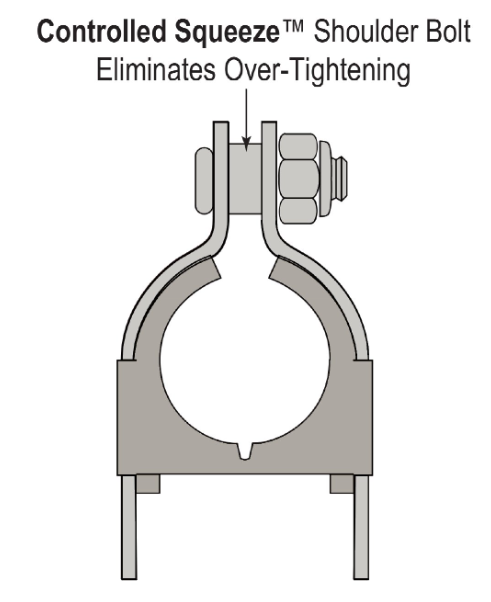

Controlled Squeeze design to prevent over-tightening and rotation on smaller sizes
Dimensions (A x B x C x D)
A: 0.62" (16 mm), B: 1.06" (27 mm), C: 0.46" (12 mm), D: 1.54" (39 mm)
