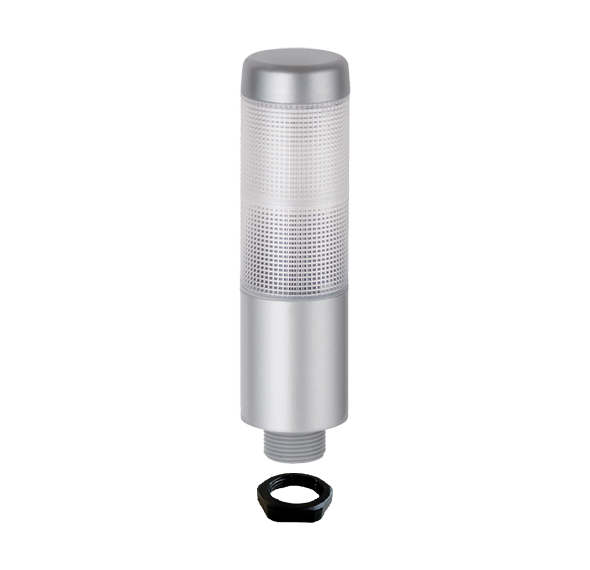

Werma 69833075 K37cl Sr Cable Em 24VAC/DC 141 mm

Product Description

The WERMA 69833075 is a ready-configured signal tower with 2 optical levels. This tower light assembly features LED continuous light and comes with a cable connection. It is pre-assembled and ready for installation with minimal modification. Ideal for indoor and outdoor use, this tower light provides clear signaling in various environments.

• Ready-configured signal tower with 2 optical levels (yellow/red)
• LED continuous light
• With cable connection

Product Highlights

Pre-assembled with easy cable connection. Clearly visible from all positions thanks to the OmniVIEW lens with no blind spots.

Product Information

Standard Information

• Brand: WERMA
• Manufacturer Part Number: 69833075
• Country of Origin: China

Technical Specifications

• Article-Nr.: 698.330.75
• Type of fixing: Built-in mounting
• Protection category: IP65
• Optical signal image: Permanent
• Diameter: 38 mm
• Cable length: 2000 mm
• Materials: PC
• Dome colour: Clear
• Housing colour: Black
• Connection Type: Cable
• Tension relief: Pull-out protection
• Cross-sectional area maximum: 0,34mm 00b2 / 22AWG
• Cable entry: Membrane grommet
• Cable entry minimum: d = 1 mm
• Cable entry maximum: d = 9 mm
• Working temperature minimum: -20 00b0C
• Working temperature maximum: +50 00b0C
• Operating Voltage: 24V AC/DC
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3
• Light source: LED
• Light colour: Red; Yellow
• Service life optical: 50,000 h maximum
• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with ISED: No
• EAC certificate available: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with RoHS CN: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with VdS: No
• Conforms with T 00dcV: No
• Brand: WERMA
• Manufacturer Part Number: 69833075
• Control Protocol: Direct
• Number of Light Tiers: 2
• Includes Sounder Tier: No Sounder Tier
• Overall Height: 141 mm
• IP Rating: IP65
• Standards: CE; cUL Listed; EAC; RoHS; WEE
• Operating Current: 0.060 A
• Light Operating Mode: Steady
• Sound Operating Mode: Steady
• For Location: Indoor; Outdoor
• NEMA Rating: NEMA 12; NEMA 4X
• Operating Temperature - Minimum: -20 00b0C
• Operating Temperature - Maximum: 50 00b0C
• Housing Material: Polycarbonate
• Lens Material: Polycarbonate
• Lens Shape: Dome
• Lens Design: Simple
• Lifespan: 50,000 hr
• Lead Length: 2,000 mm
• Electrical Connection: 2,000 mm Cable
• UNSPSC: 39112001
• Primary brand: Werma
• Main function: Tower light (monolithic)
• Product series / family name: Signal towers > Monolithic / Pre-assembled
• Sub-range name: KOMPAKT 37 (K37) DesignLOOK series
• Functions: Signaling tower / stack light
• Design: 2-tiers
• 2-color: YE+RD (YR) color pattern
• LED illumination: LED illumination
• Supply voltage (AC): 24Vac
• Supply voltage (DC): 24Vdc
• Shape: Cylindrical
• Mounting mode: M22 hole mounting
• Digital inputs: 2 x digital inputs (24Vac/dc) (color control)
• UL type 12: UL type 12
• UL type 4X: UL type 4X
• Dimensions: D38mm x H141mm
• Material: Polycarbonate (PC) window
• Ambient air temperature for operation: -4...+122 00b0F / -20...+50 00b0C
• Current consumption: 50mA
• Contents: Yellow (solid/permanent) light element
• Red (solid/permanent) light element: Red (solid/permanent) light element
• Order code / Manufacturer SKU: 698.330.75
• Manufacturer product status: Commercialized
• Equivalent to: 698-330-75
• Compliant with standard(s): cULus Listed
• CE: CE
• Electrical durability: 50000 hours
• Item: Light Assembly
• Amps Drawn: 60 mA
• Flashes Per Minute: 60
• Number Of Lights: 2
• Tower Light Mounting Style: Direct
• Voltage: 24V AC/DC
• standard: CE, CUL LISTED, EAC, ROHS, WEE
• Light Tier Color: Red, Yellow
• Color: Red, Yellow
• Lighting Technology: LED
• Light Mode: Steady
• Tower Light Color: Red, Yellow
• Tower Light Series: KOMPAKT 37
