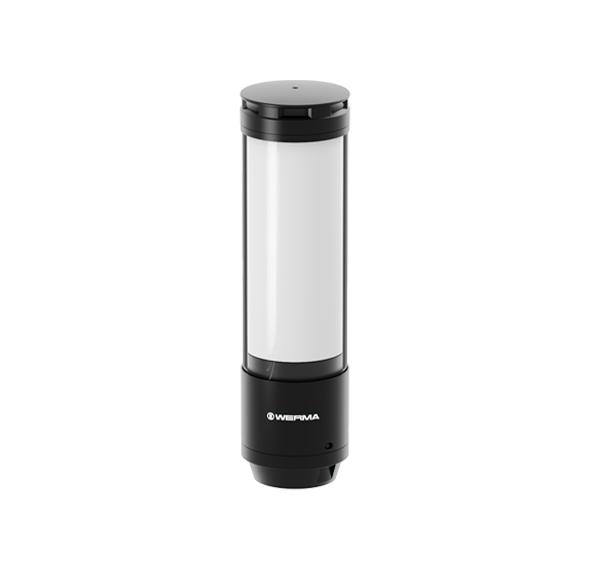

Werma 65710055 Esign 9 Segments with Siren

Product Description

The WERMA 65710055 Esign is an electronically modular signal tower that sets new standards in terms of visibility, individuality and efficiency. It fulfills Air Cleanliness Class 2 for Cleanroom applications in accordance with DIN EN ISO 14644-1. Provides full-surface signalling with clear and unmistakeable light effects for maximum visibility.

• Fulfills Air Cleanliness Class 2 for Cleanroom applications in accordance with DIN EN ISO 14644-1.
• Full-surface signalling with clear and unmistakeable light effects for maximum visibility.
• Versatile customisation options with different modes and light effects.

Product Highlights

The Esign signal tower has versatile customisation options with different modes and light effects. UL Type 4X ensures resistance to UV radiation and environmental influences.

Product Information

Standard Information

• Brand: WERMA
• Manufacturer Part Number: 65710055
• Country of Origin: United States

Technical Specifications

• Article-Nr.: 657.100.55
• Type of fixing: Base mounting; Tube mounting
• Protection category: IP66; IP69K
• connectivity: Digital entrance; USB
• Optical signal image: Blink; Double flash; Flash; Permanent; Revolving; Triple flash
• Diameter: 72
• Height: 271
• Materials: PC
• Dome colour: Tranclucent
• Housing colour: Black
• Connection: M12 plug 8-pole
• IK-Code (IEC 62262): IK08
• Operating voltage: 24V
• Operating voltage type: DC
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 405
• Rated inrush current: 800 mA
• Protection class: Protection class 3
• Overvoltage category: I
• Pollution degree: 3
• Isolation voltage: Ui = 50V / Uimp = 330V
• Request to external PSU: SELV/PELV
• Light source: LED
• Light colour: MC >1.000.000 colours
• Blink frequency: Configurable
• Service life optical: 50,000 h maximum
• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with CCC-Ex: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 4/4X/12/13
• Conforms with ISED: No
• EAC certificate available: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• Conforms with RoHS CN: 10 years
• Conforms with DNV: No
• Conforms with VdS: No
• Conforms with T UV: No
• MTTFd-value [years]: 39
• Volume (max) at 1m distance: 105 dB (A)
• Acoustic signal image: Multi-tone
• Number of tones: 10 tone
• Acoustic service life: 5,000 h maximum
• Alternate Part Number: 657.100.55, 65710055, eSIGN, Alarm, 9 Segments
• All - Approvals: CE, RoHS Compliant, See Spec
• Light Tower Body Color: Black
• Light Tower Mounting: Direct Mount
• Light Tower Number of Stacks: 1 Light Stack
• All - Specific Ratings: IP69K
• All - Voltage: 24VDC
• Series: eSIGN
• Audible Signal Modes: Multi-Tone
• Visual Signal Modes: Lighting Patterns
• Light Tower Options: M12 Connection
• visual_function: Flashing, Steady Burning, Revolving
• audible_function: Sounder
• voltage: 24 VDC
• nominal_input_voltage: 24 VDC
• lamp_color: Multicolor
• lamp_type: LED
• tone_patterns: 10
• mounting: Base, Tube
• current_rating: 0.405 A
• operating_temperature: -22-140 F
• nema_rating: NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• protection_rating: IP66, IP69K
• Category: Industrial Automation and Controls, Stackable Tower Lighting, Beacons, and Components
• Function - Lighting: Flashing
• Voltage - Supply: 21.6 ~ 26.4VDC
• Packaging: Box
• Termination Style: Connector, M12
• Part Status: Active
• Ingress Protection: IP66/IP69K - Dust Tight, Water Resistant, Waterproof
• Type: Complete Unit
• Number of Stacks: 1
• Base Product Number: 657100
